Driving Spikes (Solid Copper/ Stainless Steel Earth Rods)

Driving Spikes (Solid Copper/ Stainless Steel Earth Rods)

SKU: DRSPxx Category: Tag:
Clear
Download PDF

SKU: DRSPxx Category: Tag:

Product Information:

Driving Spikes enable the Solid Copper or Stainless Steel Earth Rod to be driven into the ground easily while protecting the end of the rod from damage.

Features:

Material: Case Hardened Steel
Standard: BS 7430

More Information:

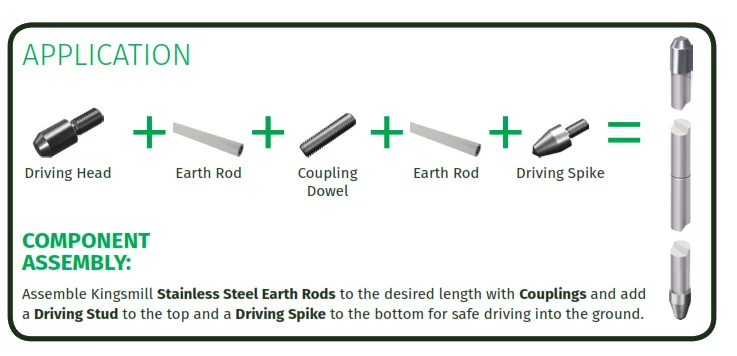

Commonly used in the assembly of an Earth Rod in the application of an Earth Termination Network.

An Earth Termination Network must:

  • protect life,
  • provide a low resistivity path to earth,
  • allow circuit protection devices to operate correctly,
  • carry high currents repeatedly,
  • have excellent corrosion resistance properties, and
  • be mechanically robust.
DESCRIPTION
LENGTH (mm)
THREAD DIAMETER (mm)
WEIGHT (kg)
PART NO.
16mm Rod Driving Spike
40
10
0.03
DRSP16
20mm Rod Driving Spike
55
10
0.06
DRSP20
25mm Rod Driving Spike
60
10
0.10
DRSP25

For Solid Copper Earth Rods:

For Stainless Steel Earth Rods:
