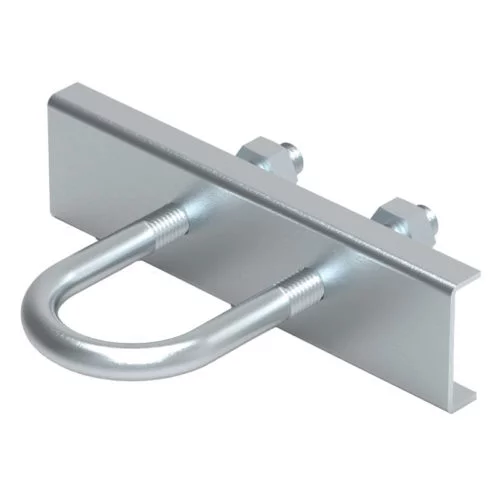

Wall Mounted Bracket for Air Terminal Interception Mast

Wall Mounted Bracket for Air Terminal Interception Mast

Download PDF

Product Information:

The Wall Mounted Bracket for Air Terminal Interception Mast is manufactured from hot-dipped galvanized steel. It is recommended to use a minimum of two brackets per Interception Mast (maximum distance apart 0.8m).

Features:

Material: Galvanised Steel

More Information:

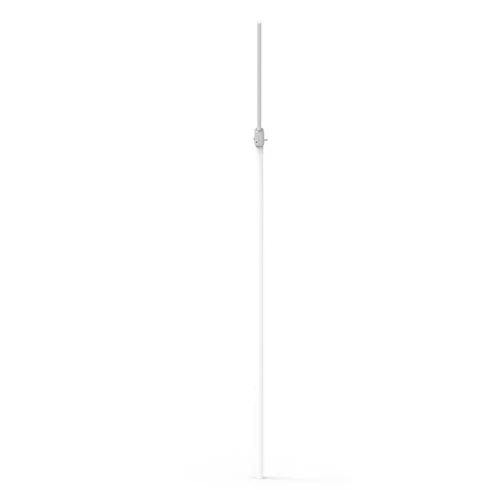

Can be used in the application of an Interception Mast/Air Terminals. Interception Masts are specially designed to be used with the Kingsmill Insulated Lightning Conductor.

The Kingsmill Insulated Lightning Conductor System is used with objects where there is no possibility to maintain separation, due either to lack of sufficient space or simply for aesthetic reasons. Through using Insulated Lightning Conductor, the Air Terminal can be placed closer to the object to be protected-for example, roof-mounted plant or solar PV panels.

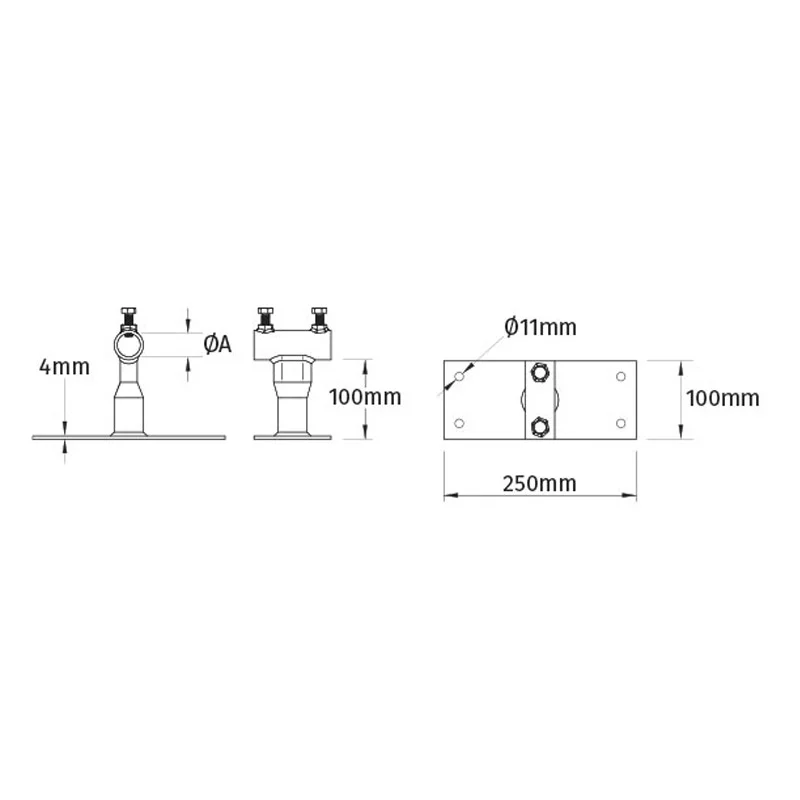

AIR TERMINAL DIAMETER (A) (mm)
SECURING BOLTS
WEIGHT (kg)
PART NO.
31
2 x M10 x 30
1.50
KM96000102
42
2 x M10 x 30
2.70
KM96000202
