Exothermic Welding Accessories: Handle Clamps

Exothermic Welding Accessories: Handle Clamps

Clear
Download PDF

Product Information:

A Handle Clamp is an essential item to make a KingsWeld connection. Different clamps are available for different types of moulds.

Features:

Following clamps are available:

  • For use on D types moulds
  • For use on E & F types moulds
  • Cathodic Protection
  • Chain Handle/Support Clamp
  • Conductor Support Clamp
  • Rail Applications

More Information:

Before making a KingsWeld connection:

  • Always wear proper clothing, gloves and safety glasses when exothermic welding.
  • Read the general safety instructions and the positioning of conductors sheet supplied with each KingsWeld mould to familiarise yourself with the procedure you are going to perform.
  • Make sure the conductors that are to be welded are dry, dirt-free and clean.
  • Use the wire brush to clean the conductor surfaces being placed inside the mould – the cleaner the surface the better the connection will be.
  • Attach the handle clamp to the KingsWeld mould and check it will open & close freely.
  • Make sure that the KingsWeld mould is dry and moisture free. The best way to do this is by pre-heating the mould with a blow torch or by making a test connection.

Handle Clamps:

PART NUMBERITEM DESCRIPTION

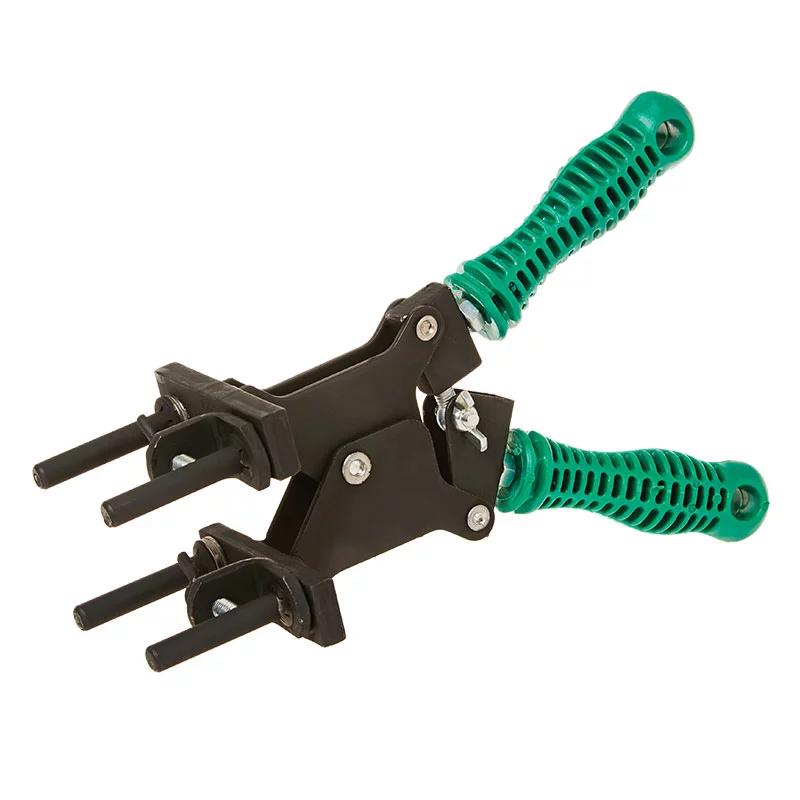

HCDHandle Clamp for Use on D Type Moulds
HCEHandle Clamp for use on E and F Type Moulds
HCCP75Handle Clamp for use on E and F Type Moulds
HCCP100Handle Clamp Cathodic Protection

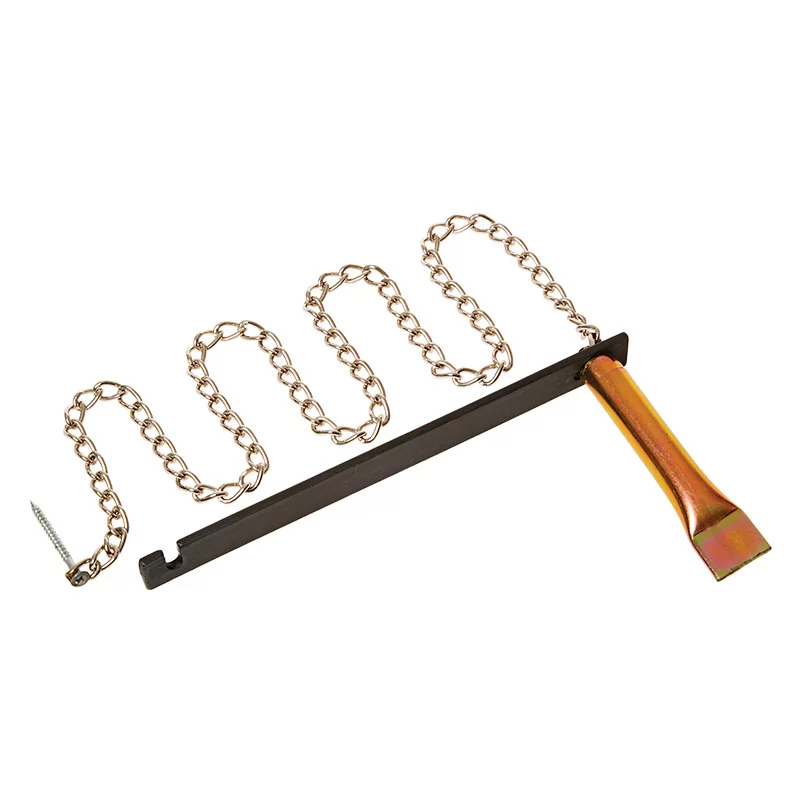

HCC1Chain Handle/Support Clamp
FRAMEConductor Support Clamp

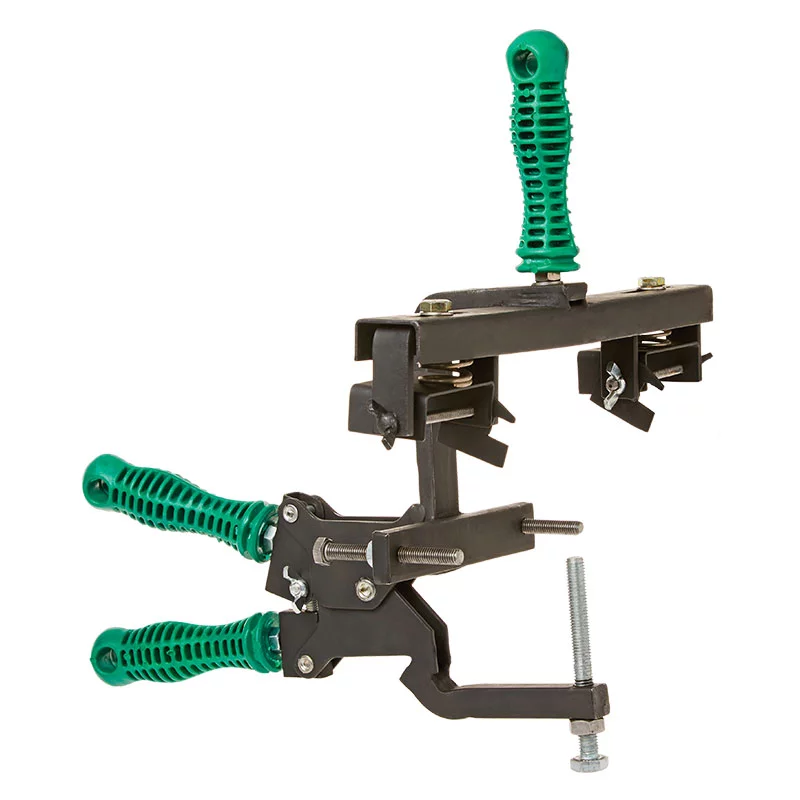

Handle Clamps for Rail Applications:

PART NUMBERITEM DESCRIPTION
HCRCD300
Rail Crown Double Mould Support Clamp
(157 to 320mm)
HCRC370
Rail Crown Double Mould Support Clamp
(175 to 260mm)
HCRS
Rail Crown Single Mould Support Clamp
HCRW

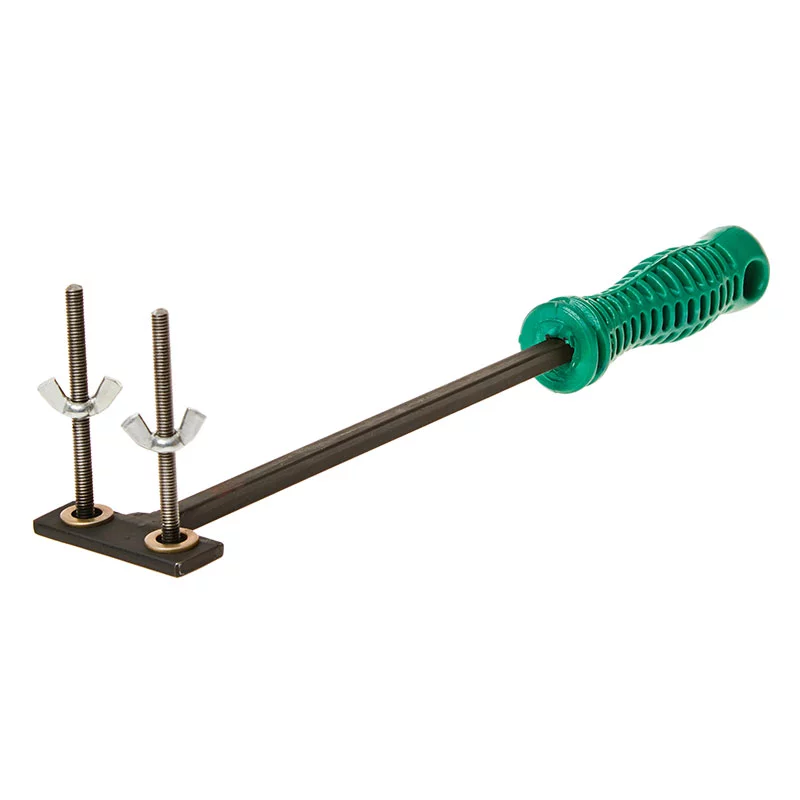

Rail Web Handle Clamp
HCCP75
Rail Foot Handle Clamp
HCCP100
Rail Foot Handle Clamp
