560W Photovoltaic Solar Panel

560W Photovoltaic Solar Panel

SKU: KMS560M-144 Category: Tag:

Type: Monocrystaline
Number of Cells: 144

Download PDF

SKU: KMS560M-144 Category: Tag:

Product Information:

5650W Photovoltaic Solar Panels are certified for the most challenging environmental conditions. This 560W Photovoltaic high-power monocrystalline solar panel operates at 21.90% efficiency to maximize the light absorption area.


Product Details:


  • Antireflective glass
  • Translucency of normal luminance is increased by 2%
  • Module efficiency is increased by 2%
  • Self-cleaning option
  • Service life as long as 25 years (30 years optional)

Solar Cell

  • Uniform color
  • High PID resistant
  • Low Breakage rate
  • High shunt-resistance
  • High model efficiency of 20%


  • Conventional frame
  • Seal lip design-glue injection
  • Serrated-clip design tensile strength

Split Junction Box

  • Heat dissipation
  • ≥IP67 protection level
  • Innovative Full-Glue filled
  • Waterproofness Junction Box

Overall Features

  • Widely using of the most popular and mature type of modules for solar system
  • High power output and highest conversion efficiency of 21.90%
  • Anti-reflective and anti-soiling surface reduces power loss from dirt and dust
  • Outstanding Performance in low-light irradiance environments
  • Excellent mechanical load resistance: Certified to withstand high wind loads (2400Pa) and Snow loads (5400Pa)
  • Positive power tolerance: 0~+5W

More Information:

All with A Grade for on-grid & off-grid use for residential and public rooftop and ground mounting

Solar panels are a clean source of energy that use the sun’s rays to convert them into electricity or heat.

Our clean energy solutions provide electrical power as a way to decarbonize and transition to clean energy in our mission to combat climate change.

Reliable Quality

  • Positive power tolerance : 0~+5W
  • 100% EL Double-inspection ensures modules are defects free
  • Modules Binned by Current to improve system performance
  • Potential induced Degradation (PID) Resistant


  • 12 years for products defects in materials & workmanship
  • 12 years for 90% of warranted minimum power output
  • 30 years for 80% of warranted minimum power output
  • 30 years liner warranty


  • ISO9001/14001
  • CE
  • TUV
  • IEC
  • 61215
  • 61730
  • Safety Class II

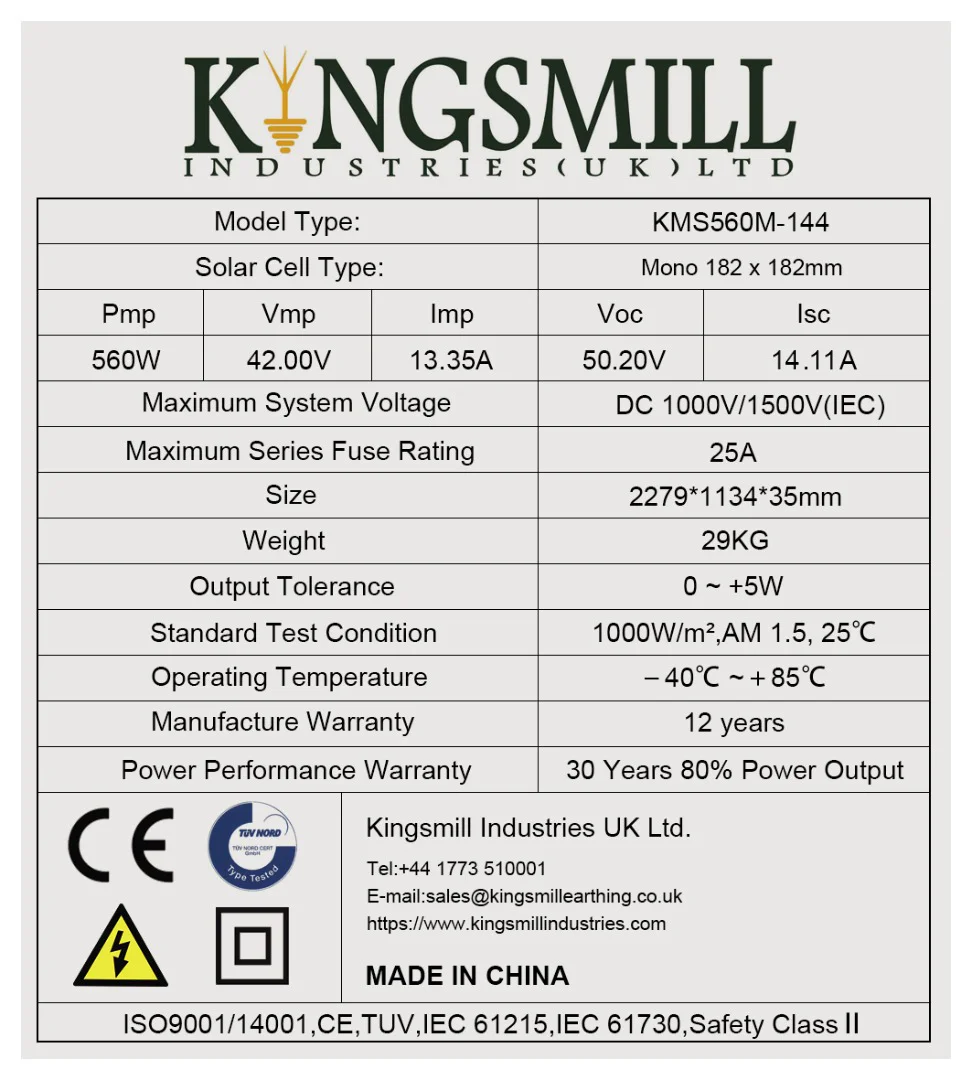

Electrical Characteristics (STC)
Module TypeKMS560M-144
Maximum Power Pmax560W
Maximum Power Voltage (Vmp)42.00V
Maximum Power Current (Imp)13.35A
Open Circuit Voltage (Voc)50.20V
Short Circuit Current (Isc)14.11A
Module Efficiency21.90%
Power Tolerance0 ~ +5W
Temperature Coefficient of Isc+0.043%/℃
Temperature Coefficient of Voc-0.26%/℃
Temperature Coefficient of Pmax-0.36%/℃
Mechanical Parameters
Cell(mm)Mono 182*182mm
Glass Thickness3.2mm AR Coating Tempered Glass
Dimensions (L*W*H)(mm)2279*1134*35mm
Cable Cross Section Size (mm²)4
Cable Cross Section Length (mm)300
No.of Cells and Connections144(6*24)
Junction BoxIP67
ConnectorMC4 Compatiple
Working Conditions
Maximum System VoltageDC 1000V/1500V(IEC)
Operating Temperature-40℃~ +85℃
Maximum Series Fuse25A
Maximum Static Load,Front (e.g.,snow and wind)5400Pa (112 lb/ft²)
Maximum Static Load,Back (e.g.,wind)2400Pa (50 lb/ft²)
Positive power tolerance0~ +5W
Application Class
Class A

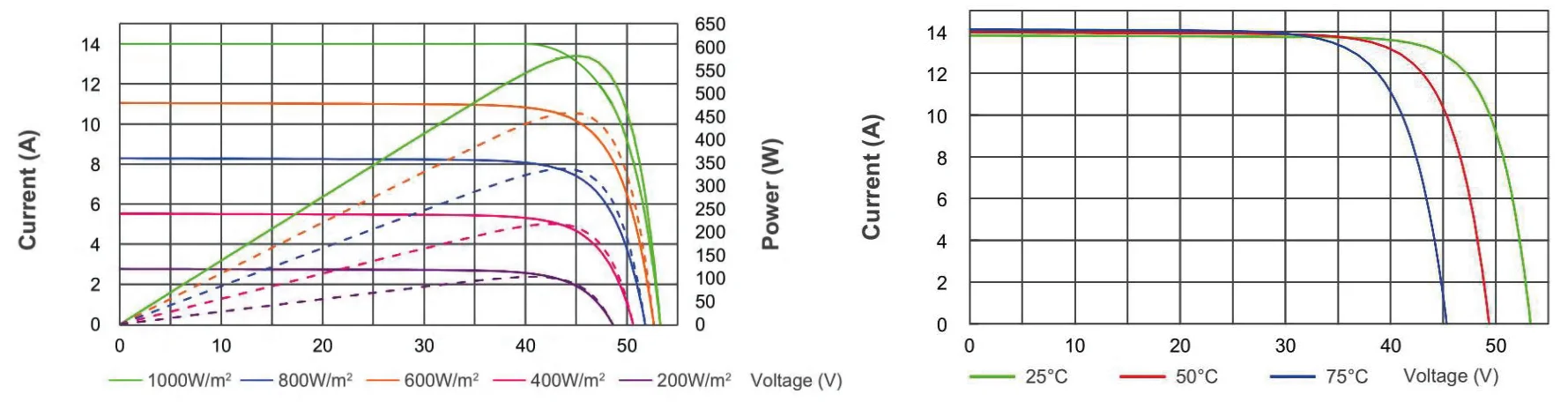

I-V Curve
I-V curve
