Expansion Bonds

Expansion Bonds

SKU: FBA200/xxx Categories: , ,
Clear
Download PDF

SKU: FBA200/xxx Categories: , ,

Product Information:

Expansion Bonds absorb movement caused by the electromechanical effects of a direct lightning strike to the Lightning Protection Network. They can also absorb movement due to temperature and climate changes.

Features:

Material: Bare Copper, Tinned Copper, or Aluminium
Standard: BS:EN 13602

More Information:

Other sizes, materials, hole sizes, etc available on request.

An important part of a Lightning Protection System (LPS) is that electrically continuous parts of a structure must be bonded into the Lightning Protection network. The purpose of this bonding is to ensure that, in the event of a lightning discharge, any sparking of flashover of the lightning current to conductive parts of the structure, for example, water pipes, cables, etc are avoided.

Bare Copper Expansion Bonds:

DIMENSIONS (mm)
HOLE DIA. (mm)
LENGTH (mm)
CSA (mm²)
WEIGHT (kg)
PART NO.
30 x 5 x 200
M8
200
50
0.13
FB200/50/9
30 x 5 x 200
M10
200
50
0.13
FB200/50/11
32 x 6 x 200
M8
200
75
0.20
FB200/75/9
32 x 6 x 200
M10
200
75
0.20
FB200/75/11

Tinned Copper Expansion Bonds:

DIMENSIONS (mm)
HOLE DIA. (mm)
LENGTH (mm)
CSA (mm²)
WEIGHT (kg)
PART NO.
30 x 5 x 200
M8
200
50
0.14
FBT200/50/9
30 x 5 x 200
M10
200
50
0.14
FBT200/50/11
32 x 6 x 200
M8
200
75
0.21
FBT200/75/9
32 x 6 x 200
M10
200
75
0.21
FBT200/75/11

Aluminium Expansion Bonds:

DIMENSIONS (mm)
HOLE DIA. (mm)
LENGTH (mm)
CSA (mm²)
WEIGHT (kg)
PART NO.
30 x 5 x 200
M8
200
50
0.03
FBA200/50/9
30 x 5 x 200
M10
200
50
0.03
FBA200/50/11
32 x 6 x 200
M8
200
75
0.06
FBA200/75/9
32 x 6 x 200
M10
200
75
0.06
FBA200/75/11

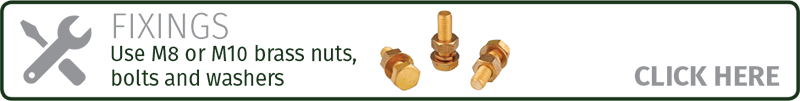

Fixings for Bare Copper Expansion Bonds:

Fixings for Tinned Copper Expansion Bonds:

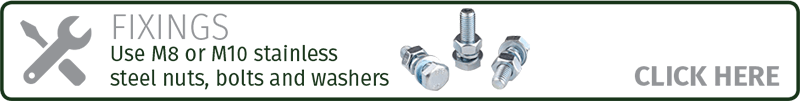

Fixings for Aluminium Expansion Bonds:
