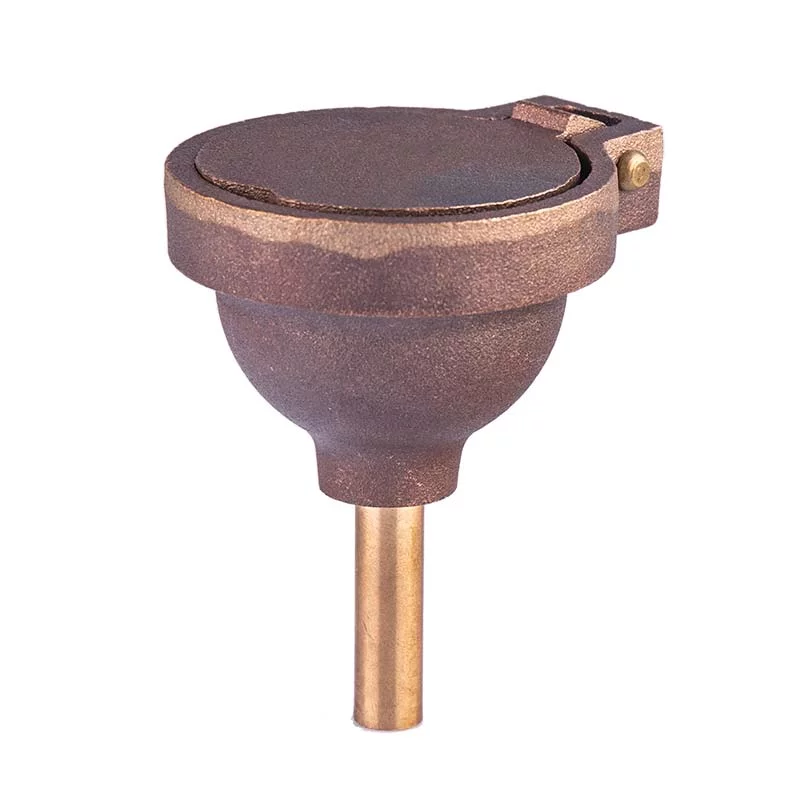

Static Earth Receptacles

Static Earth Receptacles

Clear
Download PDF

Product Information:

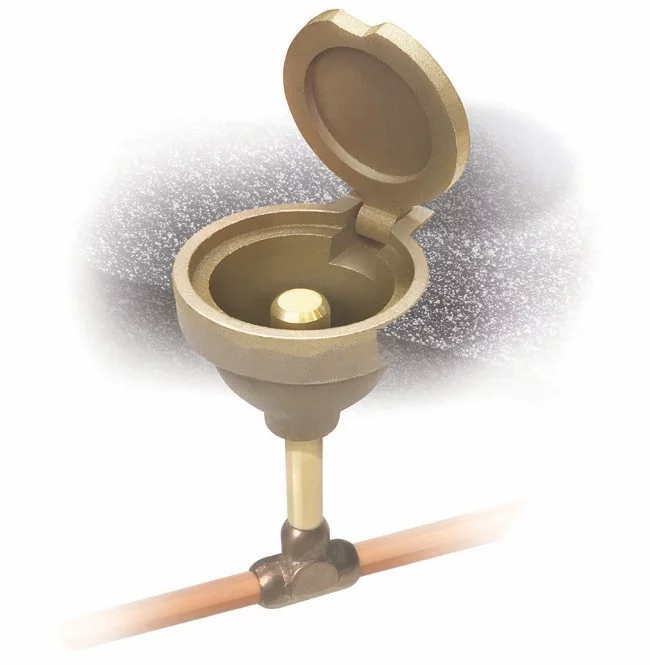

Static Earth Receptacles provide a convenient point for attaching portable static discharge wires and clamps to the earth termination, thus safely discharging potentially lethal static voltages

Features:

Material: Gunmetal
Standard: BS 7430

More Information:

An important part of a Lightning Protection System (LPS) is that electrically continuous parts of a structure must be bonded into the Lightning Protection network. The purpose of this bonding is to ensure that, in the event of a lightning discharge, any sparking of flashover of the lightning current to conductive parts of the structure, for example, water pipes, cables, etc are avoided.

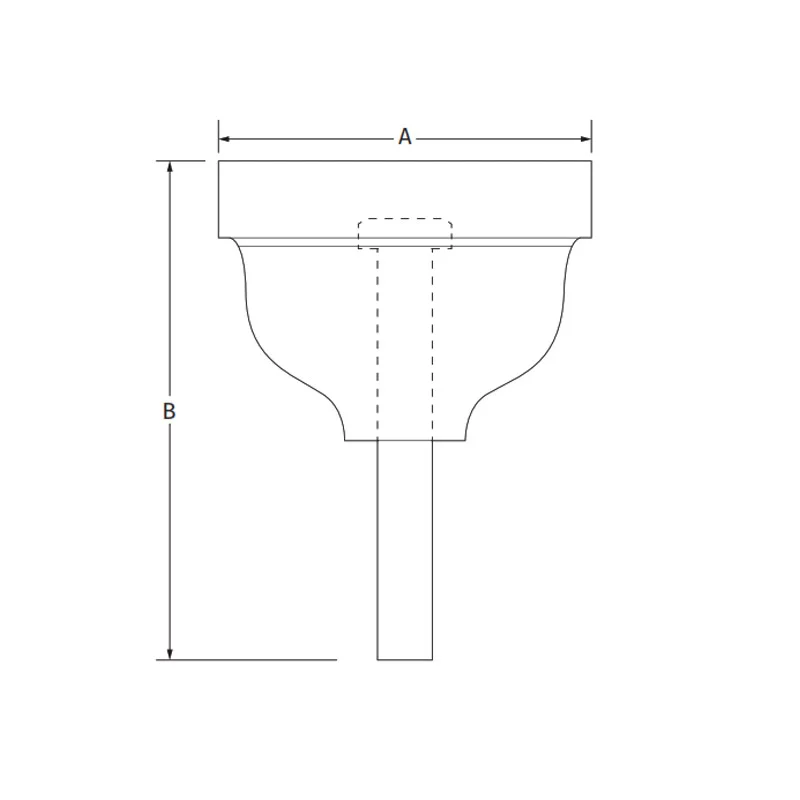

WIDTH (A) (mm)
HEIGHT (B) (mm)
WEIGHT (kg)
PART NO.
68
90
0.58
SER68
130
160
4.25
SER130
