C Crimp Connectors

C Crimp Connectors

Clear
Download PDF

Product Information:

C Crimp Connectors are manufactured from high purity copper profiles and are suitable for a variety of uses, either to create an earthing network or to tap off overhead distribution lines.

C Crimp Connectors are designed to allow connections to cable to be formed without the need to cut the main cable. We also supply a range of sizes in either plain or tinned finish.

Features:

Material: Copper
Standard: BS:EN 12163

More Information:

An important part of a Lightning Protection System (LPS) is that electrically continuous parts of a structure must be bonded into the Lightning Protection network. The purpose of this bonding is to ensure that, in the event of a lightning discharge, any sparking of flashover of the lightning current to conductive parts of the structure, for example, water pipes, cables, etc is avoided.

CAPACITIES (mm²)

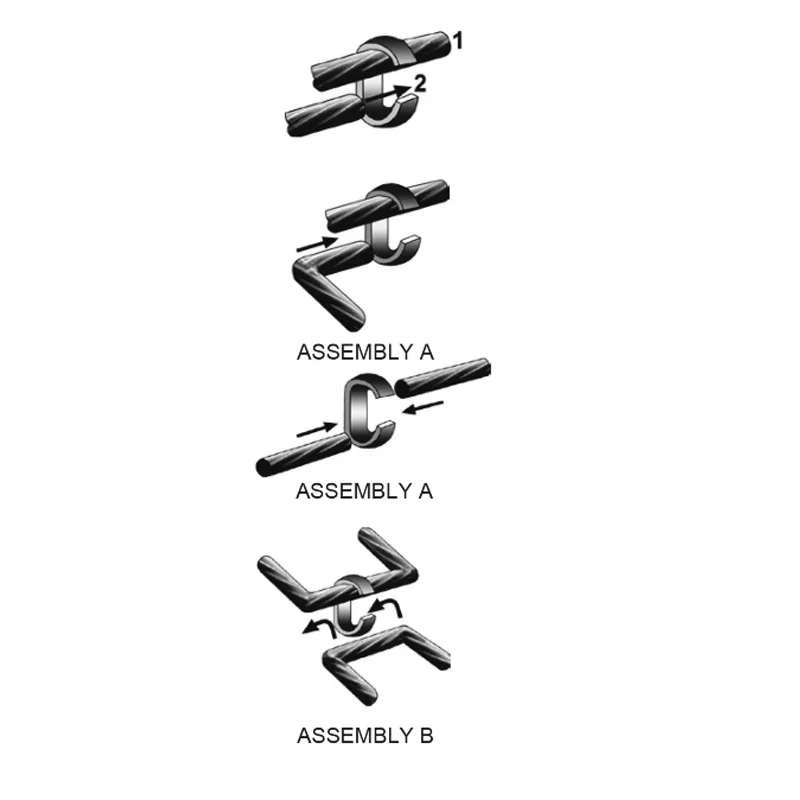

ASSEMBLY
PART NO.
TOTALS
MINIMUM
MAXIMUM
Min
Max
Run
Tap
Run
Tap
COPPER
TIN PLATED COPPER
3
12
1.5
1.5
6
6
A
C6
C6E
13
20
10
2 x 1.5
10
10
A
C10
C10E
19
32
10
16
9
2 x 1.5
16
16
A + B
C16
C16E
17
35
16
1.5
25
25
A
C25-10
C25-10E
35
41
25
10
25
25
A + B
C25PM
C5PME
33
56
25
27
30
10
6
2 x 1.5
29.3
35
50
29.3
35
50
A
A + B
A + B
C25
C25E
53
70
30
50
25
2 x 1.5
35
50
35
50
A + B
A + B
C35
C35E
66
100
50
63
16
2 x 1.5
50
70
75
50
70
75
A
A
A
C50
C50E
54
110
50
4
70
70
A
C70-35
C70-35E
85
140
50
35
70
70
A
C70
C70E
105
170
75
70
90
30
35
16
95
95
95
95
A + B
A + B
C75
C75E
99
140
95
4
100
100
A
C95-35
C95-35E
150
190
75
75
95
95
A
C95
C95E
156
240
120
150
35
6
120
150
120
150
A
A
C120
C120E
225
300
150
75
150
150
A+ B
C150
C150E
260
300
185
75
-
-
A + B
C185-95
C185-95E
210
370
115
150
95
60
185
185
185
185
A + B
A + B
C185
C185E
387
480
240
147
240
240
A
C240
C240E
