Earth Points (without Cover Plate)

Earth Points (without Cover Plate)

SKU: EBxxx Categories: , ,
Clear
Download PDF

SKU: EBxxx Categories: , ,

Product Information:

Earth Points (without cover plate) provide a convenient bonding point for bolted connections.

Earth Points (without cover plate) are available with 1, 2 or 4 holes. Manufactured from gunmetal (except for a stainless steel single hole option).

Features:

Material: Gunmetal/Stainless Steel
Standard: BS:EN 62561-1 Class H, BS 7430
Tightening torque: 8Nm

Earth Points (without cover plate) are available with 1, 2 or 4 holes. Manufactured from gunmetal (except for a stainless steel single hole option).

More Information:

An important part of a Lightning Protection System (LPS) is that electrically continuous parts of a structure must be bonded into the Lightning Protection network. The purpose of this bonding is to ensure that, in the event of a lightning discharge, any sparking of flashover of the lightning current to conductive parts of the structure, for example, water pipes, cables, etc are avoided.

HOLES
FIXING HOLES
MATERIAL
STEM SIZE (Ø)
WEIGHT (kg)
Part No.
1
M8
Gunmetal
10mm
0.170
EBP1-M8

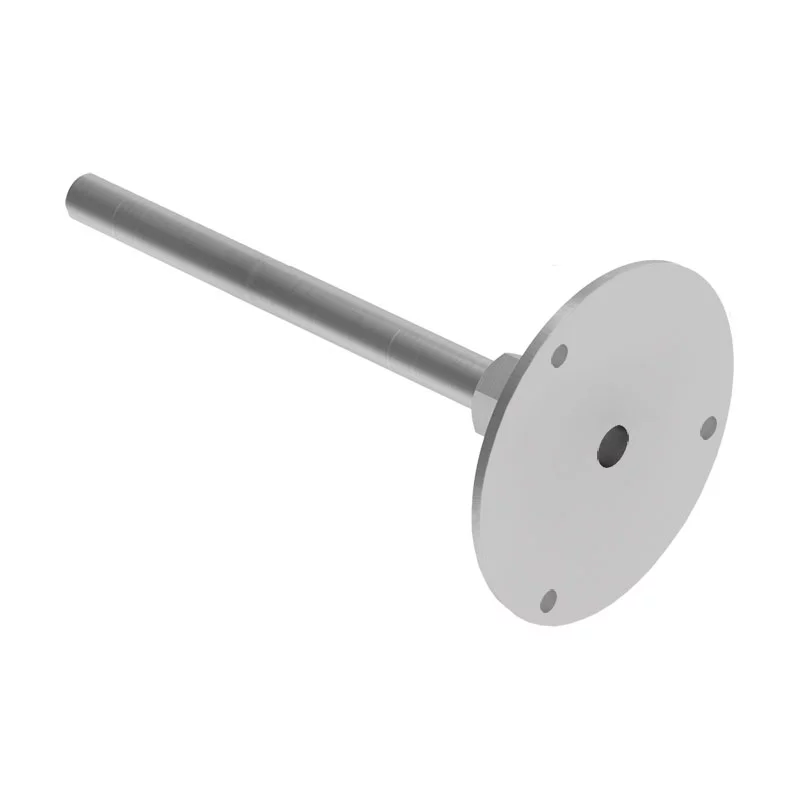

1
M10
Stainless Steel
10mm
0.217
EBP1SS-M10
1
M10
Gunmetal
10mm
0.170
EBP1

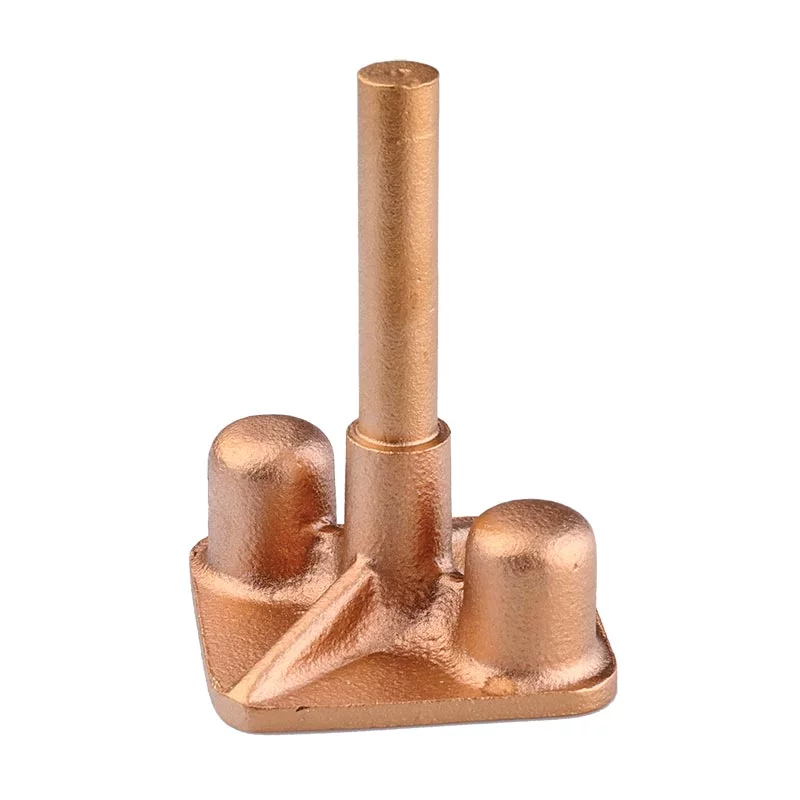

2
M10
Gunmetal
10mm
0.300
EBP2
4
M10
Gunmetal
10mm
0.350
EBP4
