Copper Tape (Bare)

Copper Tape (Bare)

SKU: CTBAxxx Category: Tag:
Clear
Download PDF

SKU: CTBAxxx Category: Tag:

Product Information:

Copper Tape is embossed ‘Kingsmill (UK)’ for identification and is manufactured from high conductivity annealed copper.

Features:

Material: Copper to BS:EN 13601 (formerly BS 1432)
Standard: BS:EN 62561-2 : 2012

More Information:

All Bare Copper Tape sold in the specified coil lengths only. However, CTBA2530 can be cut to the desired length. Please speak to the sales office for further details referencing part no. CTBA2530/DRUM.

Conductors are an essential component of a Lightning Protection System. They form part of:

  • The Air Termination Network – arresting the lightning strike
  • The Down Conductor System – taking the lightning discharge to ground
  • The Earth Termination/Network – safely dissipating the lightning discharge into the ground.

Conductors are also an integral and important component of an earthing system, whether this be for a power station, sub-station, cell site, solar PV array, etc.

Conductors provide a low impedance path and they must be:

  • Correctly sized for fault current
  • Sufficiently robust to resist mechanical damage
  • Able to resist the effects of corrosion

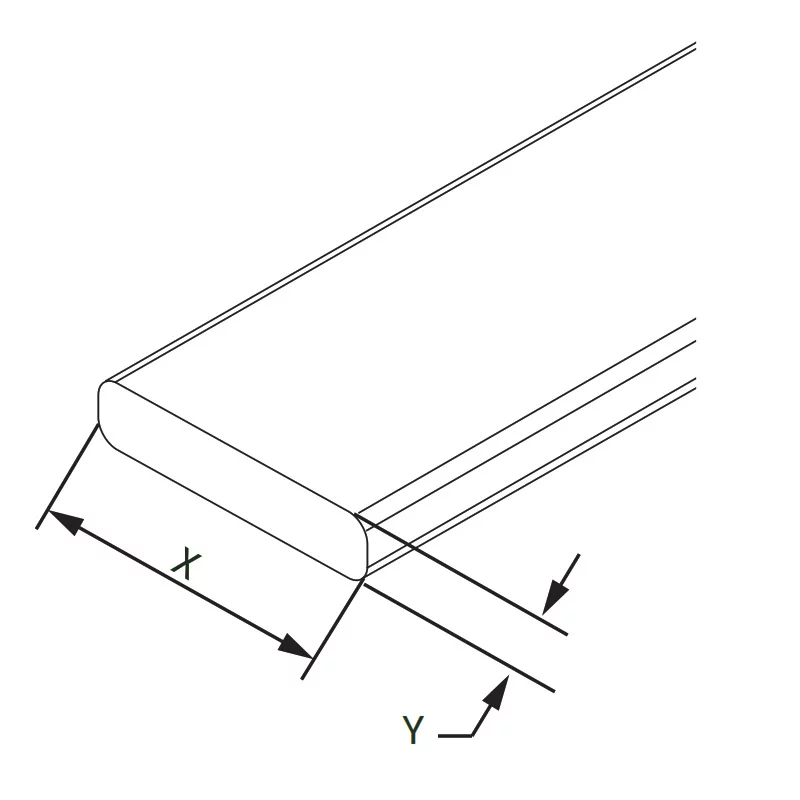

CONDUCTOR SIZE (X x Y) (mm)
CSA (mm²)
COIL SIZE (m)
WEIGHT (kg/m)
PART NO.
12.5 x 1.5
18.75
100
0.17
CTBA1215
12.5 x 3
37.5
100
0.33
CTBA1230
20 x 1.5
30
100
0.27
CTBA2015
20 x 3
60
100
0.53
CTBA2030
25 x 1.5
37.5
100
0.33
CTBA2515
25 x 3
75
25
0.67
CTBA2530/25
25 x 3
75
50
0.67
CTBA2530
25 x 4
100
50
0.89
CTBA2540
25 x 6
150
40
1.34
CTBA2560
30 x 2
60
50
0.53
CTBA3020
30 x 3
90
50
0.80
CTBA3030
30 x 4
120
40
1.07
CTBA3040
30 x 5
150
40
1.33
CTBA3050
31 x 3
93
50
0.83
CTBA3130
31 x 6
186
30
1.65
CTBA3160
38 x 3
114
50
1.01
CTBA3830
38 x 5
190
30
1.69
CTBA3850
38 x 6
228
25
2.03
CTBA3860
40 x 3
120
40
1.06
CTBA4030
40 x 4
160
30
1.42
CTBA4040
40 x 5
200
25
1.78
CTBA4050
40 x 6
240
25
2.13
CTBA4060
50 x 3
150
40
1.33
CTBA5030
50 x 4
200
30
1.78
CTBA5040
50 x 5
250
20
2.22
CTBA5050
50 x 6
300
20
2.68
CTBA5060
