Tinned Copper Tape

Tinned Copper Tape

SKU: TCTDxxx Category: Tag:
Clear
Download PDF

SKU: TCTDxxx Category: Tag:

Product Information:

Tinned Copper Tape is embossed ‘Kingsmill (UK)’ for identification purposes and is manufactured from high conductivity annealed copper.

Features:

Material: Tinned Copper
Standard: BS:EN 13601 (formerly BS 1432)

More Information:

Tinned Copper Tape is sold in the specified coil lengths only.

Conductors are an essential component of a Lightning Protection System. They form part of:

  • The Air Termination Network – arresting the lightning strike
  • The Down Conductor System – taking the lightning discharge to ground
  • The Earth Termination/Network – safely dissipating the lightning discharge into the ground.

Conductors are also an integral and important component of an earthing system, whether this be for a power station, sub-station, cell site, solar PV array, etc.

Conductors provide a low impedance path and they must be:

  • Correctly sized for fault current
  • Sufficiently robust to resist mechanical damage
  • Able to resist the effects of corrosion

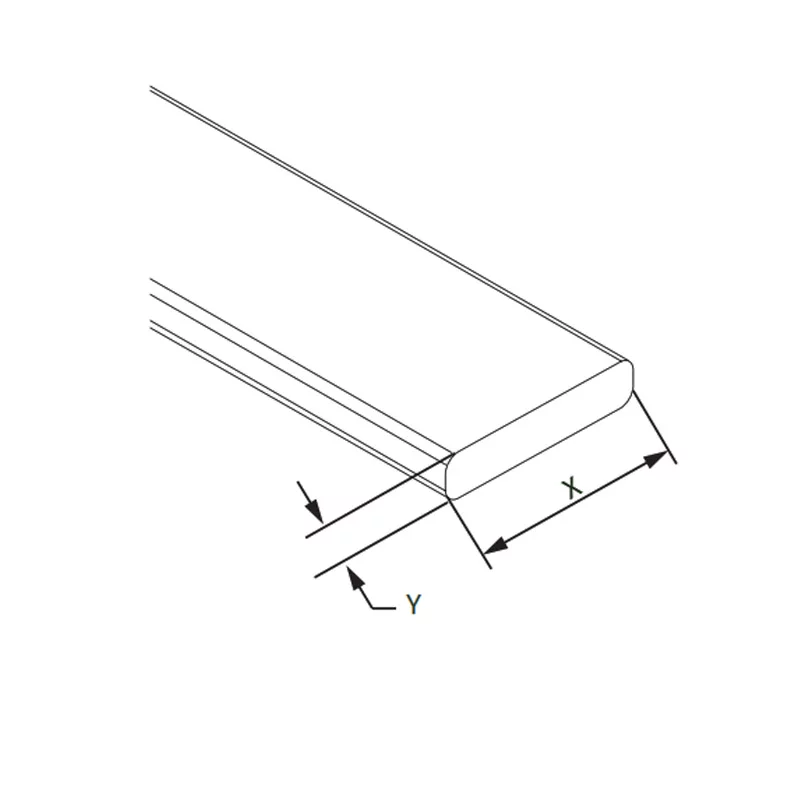

CONDUCTOR SIZE (X x Y) (mm)
CSA (mm²)
COIL SIZE (m)
WEIGHT (kg/m)
PART NO.
12.5 x 1.5
18.75
100
0.17
TCTD1215
12.5 x 3
37.50
100
0.33
TCTD1230
20 x 1.5
30
100
0.27
TCTD2015
20 x 3
60
100
0.53
TCTD2030
25 x 1.5
37.50
100
0.33
TCTD2515
25 x 3
75
50
0.67
TCTD2530
25 x 4
100
50
0.89
TCTD2540
25 x 6
150
40
1.34
TCTD2560
30 x 2
60
50
0.53
TCTD3020
30 x 3
90
50
0.80
TCTD3030
30 x 4
120
40
1.07
TCTD3040
30 x 5
150
40
1.33
TCTD3050
31 x 3
93
50
0.83
TCTD3130
31 x 6
186
30
1.65
TCTD3160
38 x 3
114
50
1.01
TCTD3830
38 x 5
190
30
1.69
TCTD3850
38 x 6
228
25
2.03
TCTD3860
40 x 3
120
40
1.06
TCTD4030
40 x 4
160
30
1.42
TCTD4040
40 x 5
200
25
1.78
TCTD4050
40 x 6
240
25
2.13
TCTD4060
50 x 3
150
40
1.33
TCTD5030
50 x 4
200
30
1.78
TCTD5040
50 x 5
250
20
2.22
TCTD5050
50 x 6
300
20
2.68
TCTD5060
