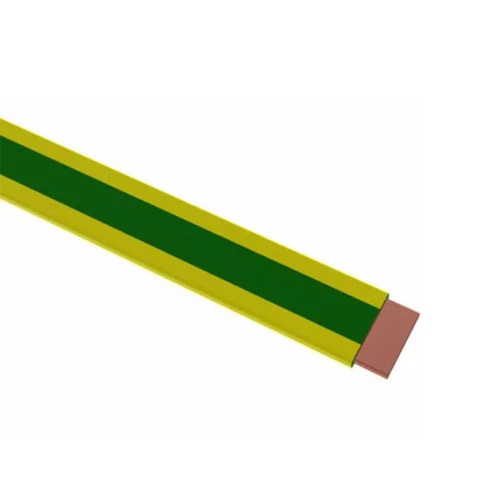

Copper Tape (PVC Covered)

Copper Tape (PVC Covered)

SKU: TCxxx Category: Tag:
Clear
Download PDF

SKU: TCxxx Category: Tag:

Product Information:

Kingsmill offers a wide range of UV-stabilised PVC Covered Copper Tapes in a range of colours. These colours have been chosen to match the most common structural materials and will reduce the visual impact of Lightning Protection conductor.

Features:

Material: Copper
Standard: BS:EN 13601 (formerly BS 1432)
PVC Colour: BS 5252, except green BS 6746C

More Information:

All PVC Covered Copper Tape is sold in the specified coil lengths only.

Special colours are available upon request but are subject to minimum quantity and higher set-up costs. Please contact our sales team with details of your requirements.

Conductors are an essential component of a Lightning Protection System. They form part of:

  • The Air Termination Network – arresting the lightning strike
  • The Down Conductor System – taking the lightning discharge to ground
  • The Earth Termination/Network – safely dissipating the lightning discharge into the ground.

Conductors are also an integral and important component of an earthing system, whether this be for a power station, sub-station, cell site, solar PV array, etc.

Conductors provide a low impedance path and they must be:

  • Correctly sized for fault current
  • Sufficiently robust to resist mechanical damage
  • Able to resist the effects of corrosion
CONDUCTOR SIZE (X x Y) (mm)
CSA (mm²)
COLOUR (to BS 5252*)
COIL SIZE (m)
WEIGHT (kg/m)
PART NO.
25 x 3
75
Black18B29*
25
0.78
TCBL253
25 x 3
75
Brown06C39*
25
0.78
TCBN253
25 x 3
75
GreenBS 6746C
25
0.78
TCGN253
25 x 3
75
Grey00A07*
25
0.78
TCGY253
25 x 3
75
Stone08B23*
25
0.78
TCST253
25 x 3
75
White10B15*
25
0.78
TCWH253
25 x 6
150
GreenBS 6746C
40
1.53
TCGN256
31 x 6
186
GreyRAL 7037
25
1.91
TC3160
31 x 6
186
IvoryRAL 1015
25
1.91
TCIV316
31 x 6
186
OysterRAL 1013
25
1.91
TCOW316
31 x 6
186
WhiteRAL 9003
25
1.91
TCW316
50 x 6
300
GreenBS 6746C
20
2.96
TCGN506
