Copper Tape LSOH (Low Smoke, Zero Halogen Covered)

Copper Tape LSOH (Low Smoke, Zero Halogen Covered)

SKU: TCGNxxx Category: Tag:
Clear
Download PDF

SKU: TCGNxxx Category: Tag:

Product Information:

Copper Tape LSOH is used in tunnel situations eg. underground railways and road tunnels.

Features:

Material: Copper
Standard: BS:EN 13601 (formerly BS 1432)
PVC Colour: BS 6746C

More Information:

Sold in the specified coil lengths only.

Conductors are an essential component of a Lightning Protection System. They form part of:

  • The Air Termination Network – arresting the lightning strike
  • The Down Conductor System – taking the lightning discharge to ground
  • The Earth Termination/Network – safely dissipating the lightning discharge into the ground.

Conductors are also an integral and important component of an earthing system, whether this be for a power station, sub-station, cell site, solar PV array, etc.

Conductors provide a low impedance path and they must be:

  • Correctly sized for fault current
  • Sufficiently robust to resist mechanical damage
  • Able to resist the effects of corrosion

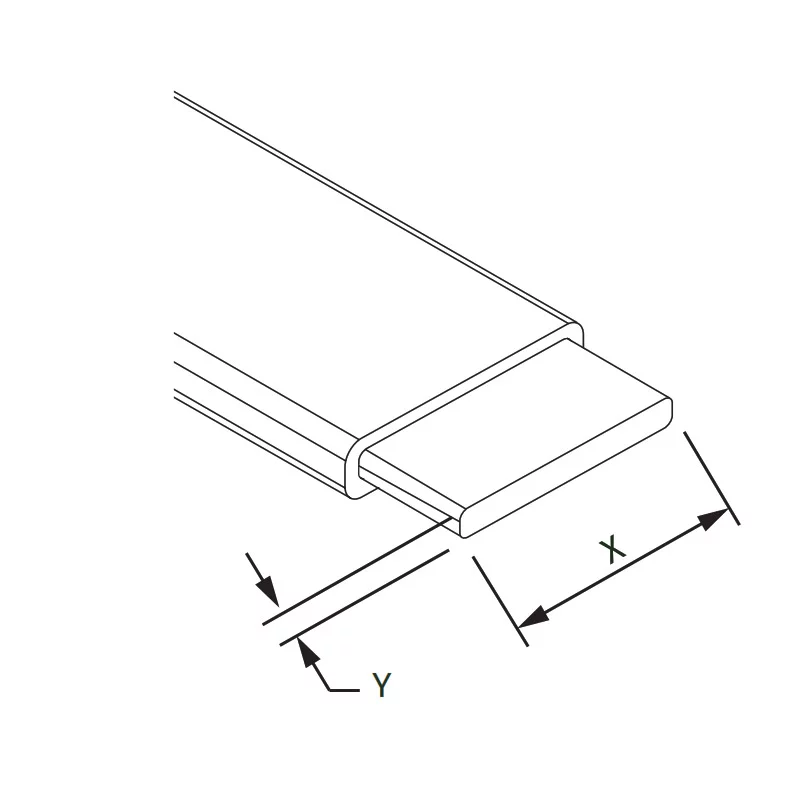

CONDUCTOR SIZE (X x Y) (mm)
CSA (mm²)
COIL SIZE (m)
WEIGHT (kg/m)
PART NO.
25 x 3
75
25
0.77
TCGN253LS
25 x 3
75
50
0.77
TCGN253LS/50
25 x 6
75
40
1.53
TCGN256LS
50 x 6
300
20
2.95
TCGN506LS
