Inspection Pit Earth Bars (for Light Duty Plastic Inspection Pit)

Inspection Pit Earth Bars (for Light Duty Plastic Inspection Pit)

SKU: PBARx/PP Categories: ,
Download PDF

SKU: PBARx/PP Categories: ,

Product Information:

Inspection Pit Earth Bars are used to facilitate testing of the earth electrode or earthing system.

The Earth Bar can be fitted width ways in a slot (one) provided. The Earth Bar allows for multiple conductor connections.

Features:

Available in 5 and 7 hole.

Material: Copper
Standard: BS:EN 13601

More Information:

Light Duty Plastic Inspection Pits are suitable for load rating to 500kg and is suitable for most types of Earthing and Lightning Protection installations.

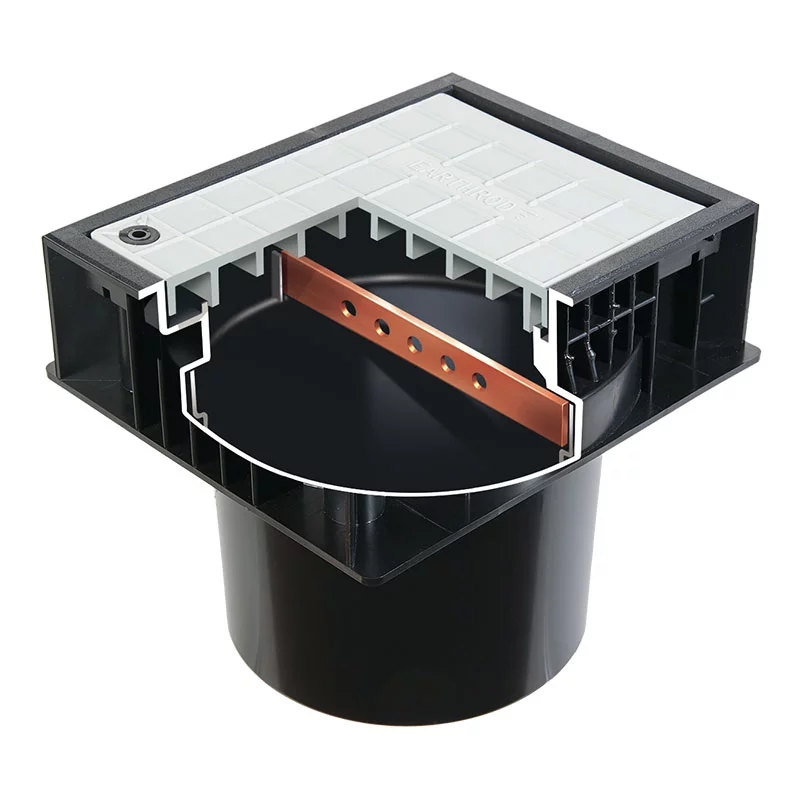

The Light Duty Plastic Inspection Pit protects the Earth Rod connection and makes it available for inspection. The pit can have an Earth Bar fitted width ways in slots provided for multiple connections.

For installing lightning earthing system applications, We recommend the use of Copper earth electrode systems due to their inherent low resistivity and corrosion resistance.

Materials used in earthing systems must be able to:

  • withstand mechanical damage,
  • resist corrosion,
  • provide a low impedance path to earth,
  • and carry the maximum fault condition for the application/installation.

For protective earth networks and lightning protection applications our range encompasses:
Copper earth rod, earthing pole, copper bonded ground rod, earth ground rod, earth rod connector, earth rod cover, earth fitting, earthing studs, ground clamps for ground rod, ground pole and grounding post.

Our castings are high quality/high copper content complying to BS 7430 and BS 62561-1. Additional to our range are UL listed copperbond earth rods and exothermic welding.

DESCRIPTION
OVERALL SIZE (mm) L x W x T
HOLE SIZE (mm)
WEIGHT (kg)
PART NO.
5 Hole Pit Bar
200 x 25 x 6
11
0.24
PBAR5/PP
7 Hole Pit Bar
200 x 25 x 6
11
0.23
PBAR7/PP
