Light Duty Plastic Inspection Pit

Light Duty Plastic Inspection Pit

SKU: PPIT-G Categories: ,

Weight (kg): 1.28

Download PDF

SKU: PPIT-G Categories: ,

Product Information:

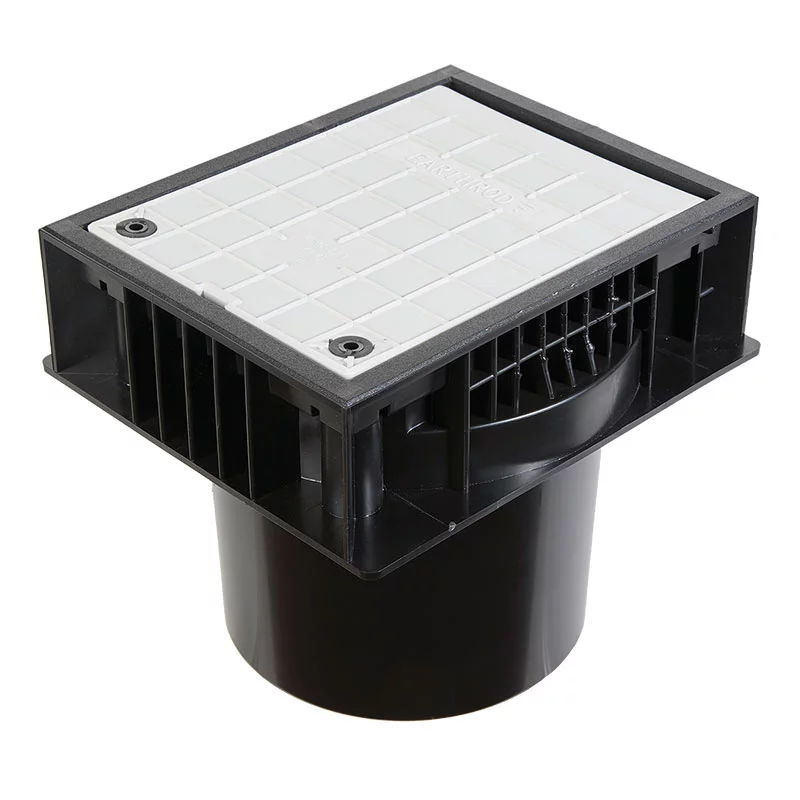

Light Duty Plastic Inspection Pits are suitable for load rating to 500kg and is suitable for most types of Earthing and Lightning Protection installations.

The Light Duty Plastic Inspection Pit protects the Earth Rod connection and makes it available for inspection. The pit can have an Earth Bar fitted width ways in slots provided for multiple connections.


Material: Polypropylene
Standard: BS:EN 62561-5:2011

More Information:

For installing lightning earthing system applications, We recommend the use of Copper earth electrode systems due to their inherent low resistivity and corrosion resistance.

Materials used in earthing systems must be able to:

  • withstand mechanical damage,
  • resist corrosion,
  • provide a low impedance path to earth,
  • and carry the maximum fault condition for the application/installation.

For protective earth networks and lightning protection applications our range encompasses:
Copper earth rod, earthing pole, copper bonded ground rod, earth ground rod, earth rod connector, earth rod cover, earth fitting, earthing studs, ground clamps for ground rod, ground pole and grounding post.

Our castings are high quality/high copper content complying to BS 7430 and BS 62561-1. Additional to our range are UL listed copperbond earth rods and exothermic welding.
