Elevation Rods

Elevation Rods

Download PDF

Product Information:

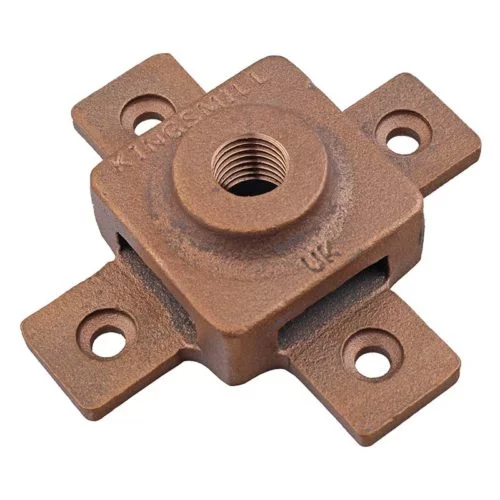

Elevation Rods are designed to be used with either the standard Air Terminal Base, Multi-Purpose Base or the Side Mounted Brackets and the Multi-Point Air Terminal.

Features:

Material: Copper/Aluminium
Standard: BS:EN 62561-2

More Information:

Copper Elevation Rods have rolled threads for high strength. Aluminium Elevation Rods have cut threads.

Can be used in the installation of a Conventional Air Termination Network.

Conventional Air Terminals offer a quick and easy solution for Air Terminals of 0.5m to 3.0m in height.

Copper Elevation Rods:

ROD LENGTH (mm)
SHANK DIA (mm)
THREAD DIA (mm)
MATERIAL
WEIGHT (kg)
PART NO.
500
14.2
16
Copper
0.75
CELV1605
1000
14.2
16
Copper
1.50
CELV1610
1500
14.2
16
Copper
2.25
CELV1615
2000
14.2
16
Copper
3.00
CELV1620
2500
14.2
16
Copper
3.75
CELV1625
3000
14.2
16
Copper
4.50
CELV1630

Aluminium Elevation Rods:

ROD LENGTH (mm)
SHANK DIA (mm)
THREAD DIA (mm)
MATERIAL
WEIGHT (kg)
PART NO.
500
16
16
Aluminium
0.30
AELV1605
1000
16
16
Aluminium
0.59
AELV1610
1500
16
16
Aluminium
0.88
AELV1615
2000
16
16
Aluminium
1.17
AELV1620
2500
16
16
Aluminium
1.46
AELV1625
3000
16
16
Aluminium
1.74
AELV1630

Application:
