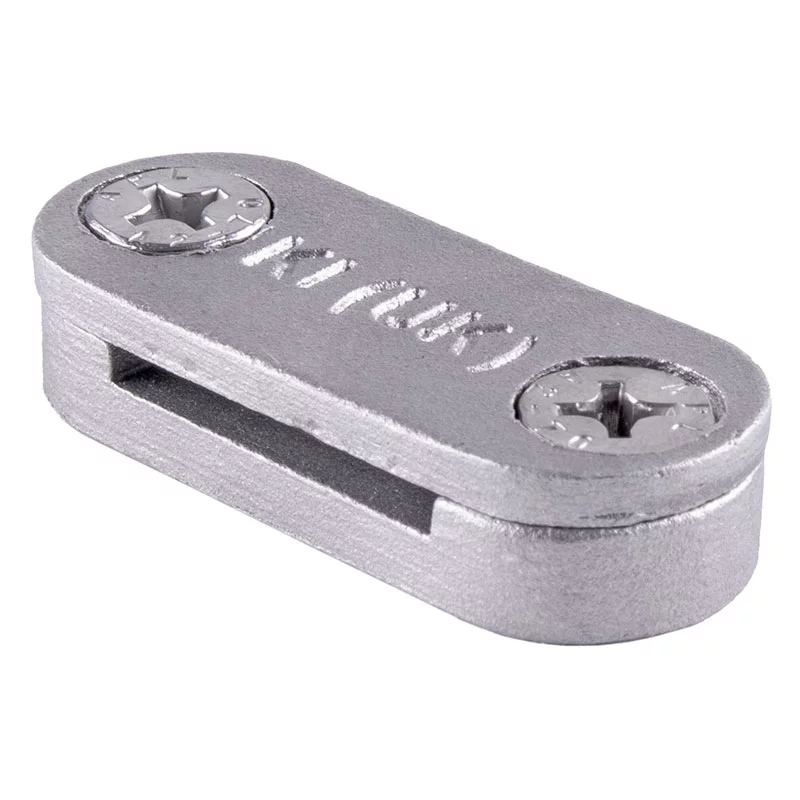

Heavy Duty Metallic DC Clips (Flat Conductor)

Heavy Duty Metallic DC Clips (Flat Conductor)

SKU: MDxxx Category: Tag:
Clear
Download PDF

SKU: MDxxx Category: Tag:

Product Information:

Heavy Duty Metallic DC Clips are suitable for use in Earthing and Lightning Protection applications.

Features:

Material: High Copper Content Alloy/Gunmetal/Aluminium Alloys
Standard:BS:EN 62561-4

More Information:

When choosing a connector it is important to ensure:

  • The connector is mechanically robust.
  • The connector is selected according to its application.
  • The connector is rated for its application.
  • To avoid bimetallic corrosion-use a bimetallic connector (do not connect bare copper directly to bare aluminium, or have water run-off from copper, fall into aluminium).
Galvanic corrosion happens when there is a potential difference between dissimilar metals:
  • When the materials are in contact in the presence of an electrolyte, corrosion occurs. One metal becomes the anode, the other the cathode. The anode will tend to go into solution and therefore corrode. The electrolyte can be water with impurities from the air.
  • In the instance of water run-off from copper- the water carries fine copper corrosion particles which, when they drop on to aluminium or zinc, may result in corrosion. The direct contact of the dissimilar metals is not required for corrosion to occur in such a case.

Heavy Duty Metallic DC Clips:

CONDUCTOR SIZE (mm)
CONDUCTOR TYPE
WEIGHT (kg)
PART NO.
20 x 3
Bare Copper
0.09
MDC203
25 x 3
Bare Copper
0.07
MDC253
25 x 4
Bare Copper
0.06
MDC254
25 x 6
Bare Copper
0.06
MDC256
31 x 3
Bare Copper
0.09
MDC313
31 x 6
Bare Copper
0.11
MDC316
38 x 3
Bare Copper
0.12
MDC383
38 x 5
Bare Copper
0.12
MDC385
38 x 6
Bare Copper
0.14
MDC386
40 x 4
Bare Copper
0.14
MDC404
40 x 6
Bare Copper
0.14
MDC406
50 x 3
Bare Copper
0.15
MDC503
50 x 4
Bare Copper
0.15
MDC504
50 x 6
Bare Copper
0.17
MDC506
25 x 3
PVC Copper
0.13
MDC253P
25 x 6
PVC Copper
0.10
MDC256P
50 x 6
PVC Copper
0.26
MDC506P
25 x 3
Lead Covered Copper
0.20
MDC253LD
20 x 3
Bare Aluminium
0.02
MDA203
25 x 3
Bare Aluminium
0.03
MDA253
25 x 6
Bare Aluminium
0.04
MDA256
50 x 6
Bare Aluminium
0.05
MDA506
25 x 3
PVC Aluminium
0.04
MDA253P
50 x 6
PVC Aluminium
0.06
MDA506P

Fixings:
