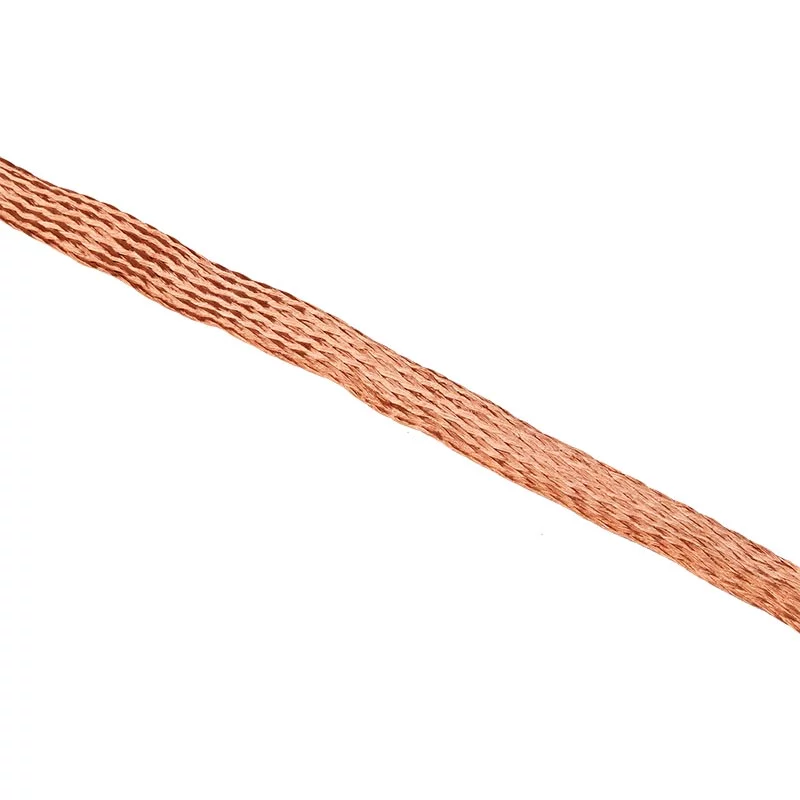

Flexible Flat Copper Braids
kingsmillindustries
Flexible-flat-copper-braids
Flexible-flat-copper-braids-tinned

Flexible Flat Copper Braids

SKU: FCBxxxx Categories: ,
Download PDF

SKU: FCBxxxx Categories: ,

Product Information:

Flexible Flat Copper Braid is ideal for the bonding of metal doors, gates, fencing, etc. The braid can also be supplied as standard pre-cut and drilled braid bonds.

Features:

Material: Copper/Tinned Copper
Standard: BS:EN 13602

More Information:

Other sizes, materials, hole sizes, etc. available on request.

More information on Earth Bonding can be found in our Bonding Guide (https://kingsmillindustries.com/product-application/bonding-applications/)

Flexible Flat Copper Braids:

OVERALL NOMINAL SIZE (mm)
CSA (mm²)
WEIGHT (kg/m)
PART NO.
12 x 1.0
6.0
0.055
FCB1201
15 x 1.5
10
0.096
FCB1515
19 x 2.5
16
0.16
FCB1925
25 x 3.0
25
0.25
FCB2530
25 x 3.5
35
0.34
FCB2535
30 x 5.0
50
0.49
FCB3050
32 x 6.0
70
0.63
FCB3260
37 x 6.0
95
0.93
FCB3760
45 x 6.0
120
1.15
FCB4560
50 x 8.0
150
1.45
FCB5080

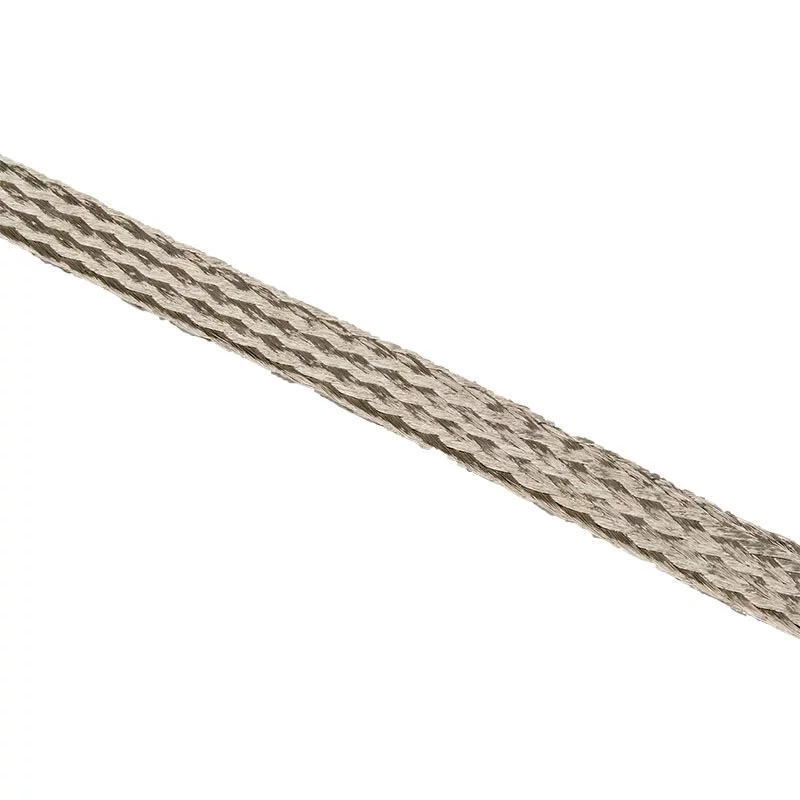

Flexible Flat Copper Braids (Tinned):

OVERALL NOMINAL SIZE (mm)
CSA (mm²)
WEIGHT (kg/m)
PART NO.
12 x 1.0
6.0
0.055
FCBT1201
15 x 1.5
10
0.096
FCBT1515
19 x 2.5
16
0.16
FCBT1925
25 x 3.0
25
0.25
FCBT2530
25 x 3.5
35
0.34
FCBT2535
30 x 5.0
50
0.49
FCBT3050
32 x 6.0
70
0.63
FCBT3260
37 x 6.0
95
0.93
FCBT3760
45 x 6.0
120
1.15
FCBT4560
50 x 8.0
150
1.45
FCBT5080

Related products

Kingsmill earth points four hole
Earth Points (without Cover Plate)
steel-beam-conductor-clamp-KM111739
Steel Beam Conductor Clamps

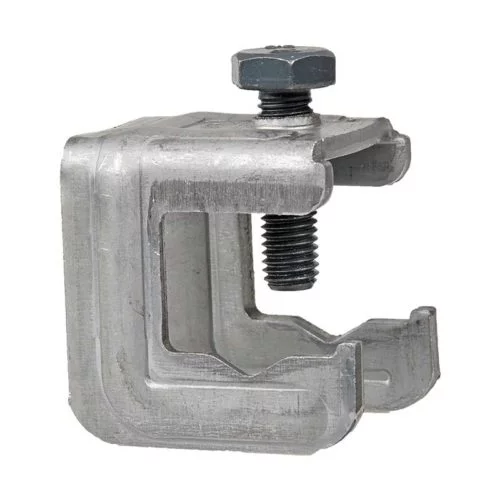

reinforcing-conductor-clamps-KMRC20
Reinforcing Conductor Clamps

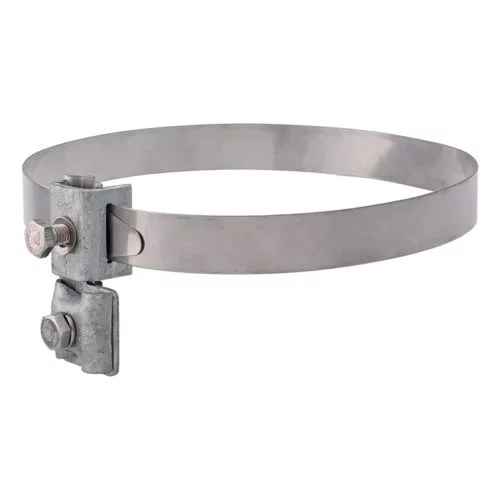

pipe-bonds-PBS1-3
