Inspection Pit Earth Bars (for Plastic Inspection Pit)

Inspection Pit Earth Bars (for Plastic Inspection Pit)

SKU: PBARxPPK Categories: ,
Download PDF

SKU: PBARxPPK Categories: ,

Product Information:

Inspection Pit Earth Bars are used to facilitate testing of the earth electrode or earthing system.

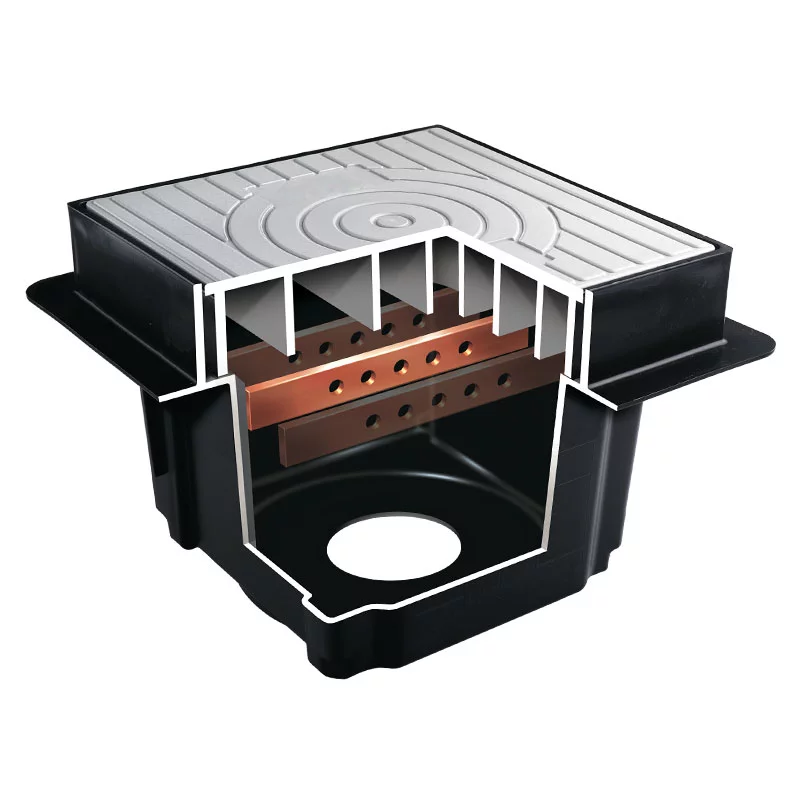

The Inspection Pit Earth Bar can be fitted width ways in slots provided in the base of the Plastic Inspection Pit (three slots per pit).

Features:

Available in 5 and 7 Hole.

Material: Copper
Standard: BS:EN 13601

More Information:

The Plastic Inspection Pit protects the Earth Rod connection and makes it available for inspection. The Plastic Inspection Pit can have up to 3 Earth Bars fitted in the slots provided for multiple connections.
Paving can be laid up to the lid edge without an unsightly concrete filler surround. Installation instructions are printed on the side. Will withstand 6000kg load when installed correctly.
Lockable lid, using a screwdriver or special key to release the locking mechanism.

For installing lightning earthing system applications, We recommend the use of Copper earth electrode systems due to their inherent low resistivity and corrosion resistance.

Materials used in earthing systems must be able to:

  • withstand mechanical damage,
  • resist corrosion,
  • provide a low impedance path to earth,
  • and carry the maximum fault condition for the application/installation.

For protective earth networks and lightning protection applications our range encompasses:
Copper earth rod, earthing pole, copper bonded ground rod, earth ground rod, earth rod connector, earth rod cover, earth fitting, earthing studs, ground clamps for ground rod, ground pole and grounding post.

Our castings are high quality/high copper content complying to BS 7430 and BS 62561-1. Additional to our range are UL listed copperbond earth rods and exothermic welding.

DESCRIPTION
OVERALL SIZE (mm) L x W x T
HOLE SIZE (mm)
WEIGHT (kg)
PART NO.
5 Hole Earth Bar
230 x 25 x 6
11
0.24
PBAR5PPK
7 Hole Earth Bar
230 x 25 x 6
11
0.22
PBAR7PPK
