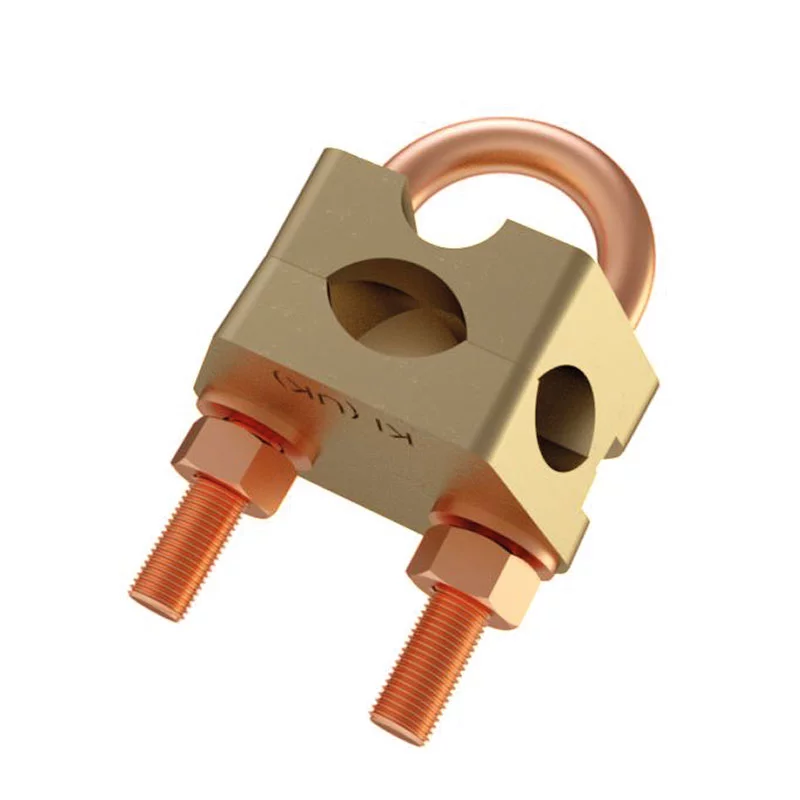

Rod to Cable Clamps (GUV Type)

Rod to Cable Clamps (GUV Type)

SKU: CGUVxxx Category: Tag:
Clear
Download PDF

SKU: CGUVxxx Category: Tag:

Product Information:

Rod to Cable Clamps (GUV Type) is designed to join various sizes of cable to earth electrodes/rebars etc. They have a high resistance to corrosion and are mechanically strong to ensure a lasting connection.

Features:

Material: High Tensile Copper Alloy (body) 99.9% HD Copper (‘U’ bolt)
Standard: BS:EN 62561-1, Class H
Tightening Torque: 12Nm

More Information:

For installing earthing applications, Copper is the recommended material to use whether below or above ground.

Materials used in earthing systems must be able to:

  • Withstand mechanical damage,
  • Resist corrosion
  • Provide a low impedance path to earth
  • Carry the maximum fault condition for the application/installation.

Our castings are high quality/high copper content complying with BS 7430 and BS 62561-1. Additional to our range are UL listed copper bond earth rods and exothermic welding.

ROD DIAMETER (in : mm)
CONDUCTOR RANGE (mm²)
WEIGHT (kg)
PART NO.
5/8 : 16 - 3/4 : 20
16 - 70
0.39
CGUV16
5/8 : 16 - 3/4 : 20
70 - 185
0.35
CGUV70
5/8 : 16 - 3/4 : 20
150 - 300
0.52
CGUV150
