Side Mounted Rod Brackets

Side Mounted Rod Brackets

Download PDF

Product Information:

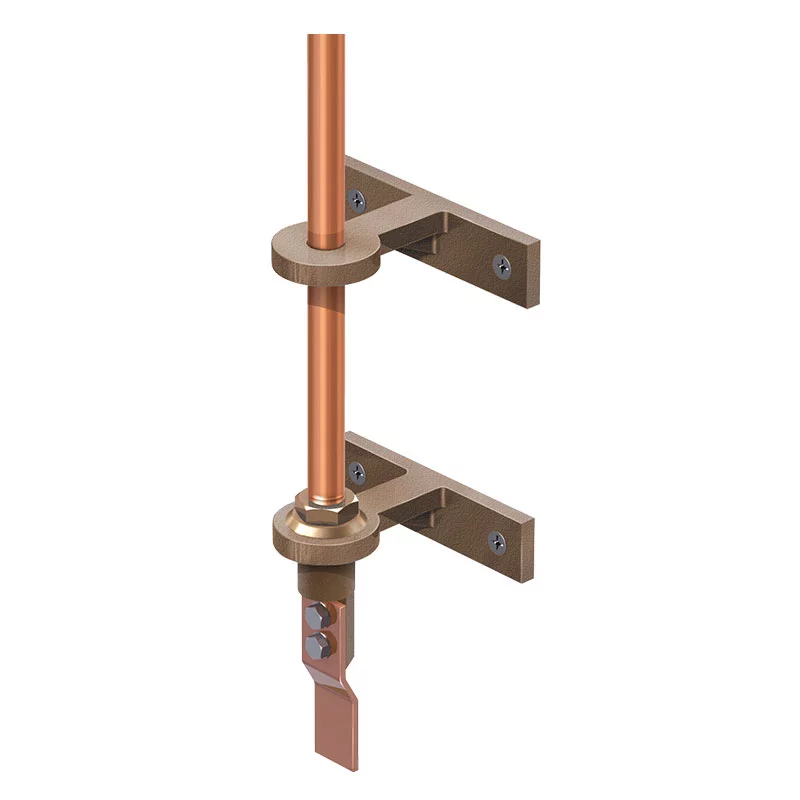

Side Mounted Rod Brackets are designed to be installed to the side of the building where it is not possible to fit a conventional Air Terminal Base.

Features:

Material: Gunmetal/aluminium

More Information:

Side Mounted Rod Brackets are sold as a pair and require a Rod To Tape Coupler to connect the Air Terminal to the Down Conductor.

Can be used in the installation of a Conventional Air Termination Network.

Conventional Air Terminals offer a quick and easy solution for Air Terminals of 0.5m to 3.0m in height.

ROD DIAMETER (mm)
MATERIAL
QUANTITY
WEIGHT (kg)
PART NO.
16
Gunmetal
2
0.91
RBC16
16
Aluminium
2
0.29
RBA16

Fixings:

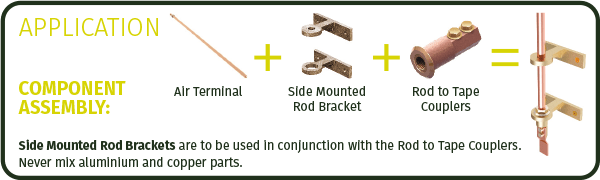

Application:
