Aluminium Tape

Aluminium Tape

SKU: ATBAxxx Category: Tag:
Clear
Download PDF

SKU: ATBAxxx Category: Tag:

Product Information:

Aluminium Tape is sold in the specified coil lengths only.

Features:

Material: Aluminium
Standard: BS:EN 755-5

More Information:

Conductors are an essential component of a Lightning Protection System. They form part of:

  • The Air Termination Network – arresting the lightning strike
  • The Down Conductor System – taking the lightning discharge to ground
  • The Earth Termination/Network – safely dissipating the lightning discharge into the ground.

Conductors are also an integral and important component of an earthing system, whether this be for a power station, sub-station, cell site, solar PV array, etc.

Conductors provide a low impedance path and they must be:

  • Correctly sized for fault current
  • Sufficiently robust to resist mechanical damage
  • Able to resist the effects of corrosion

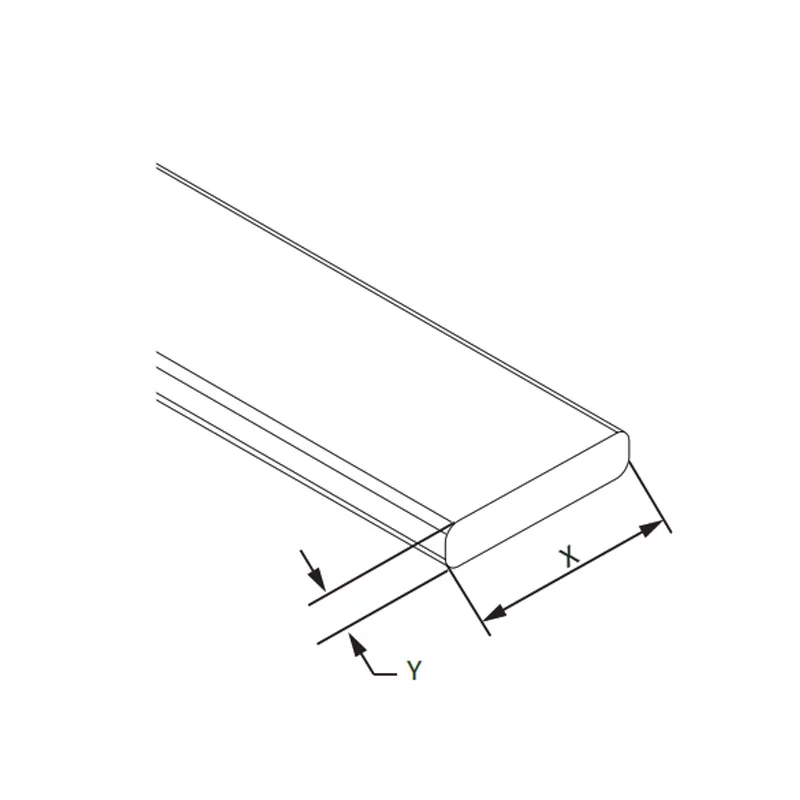

OVERALL NOMINAL SIZE (X x Y) (mm)
CSA (mm²)
COIL SIZE (m)
WEIGHT (kg/m)
PART NO.
12 .5 x 1.5
18.75
50
0.05
ATBA12515
20 x 3
60
50
0.17
ATBA2030
25 x 3
75
50
0.21
ATBA2530
30 x 3
90
50
0.25
ATBA3030
25 x 6
150
50
0.42
ATBA2560
40 x 6
240
50
0.67
ATBA4060
50 x 6
300
50
0.85
ATBA5060
