Growatt SPF 3000TL LVM

Growatt SPF 3000TL LVM

SKU: N/A Category: Tag:
Download PDF

SKU: N/A Category: Tag:

Product Information:

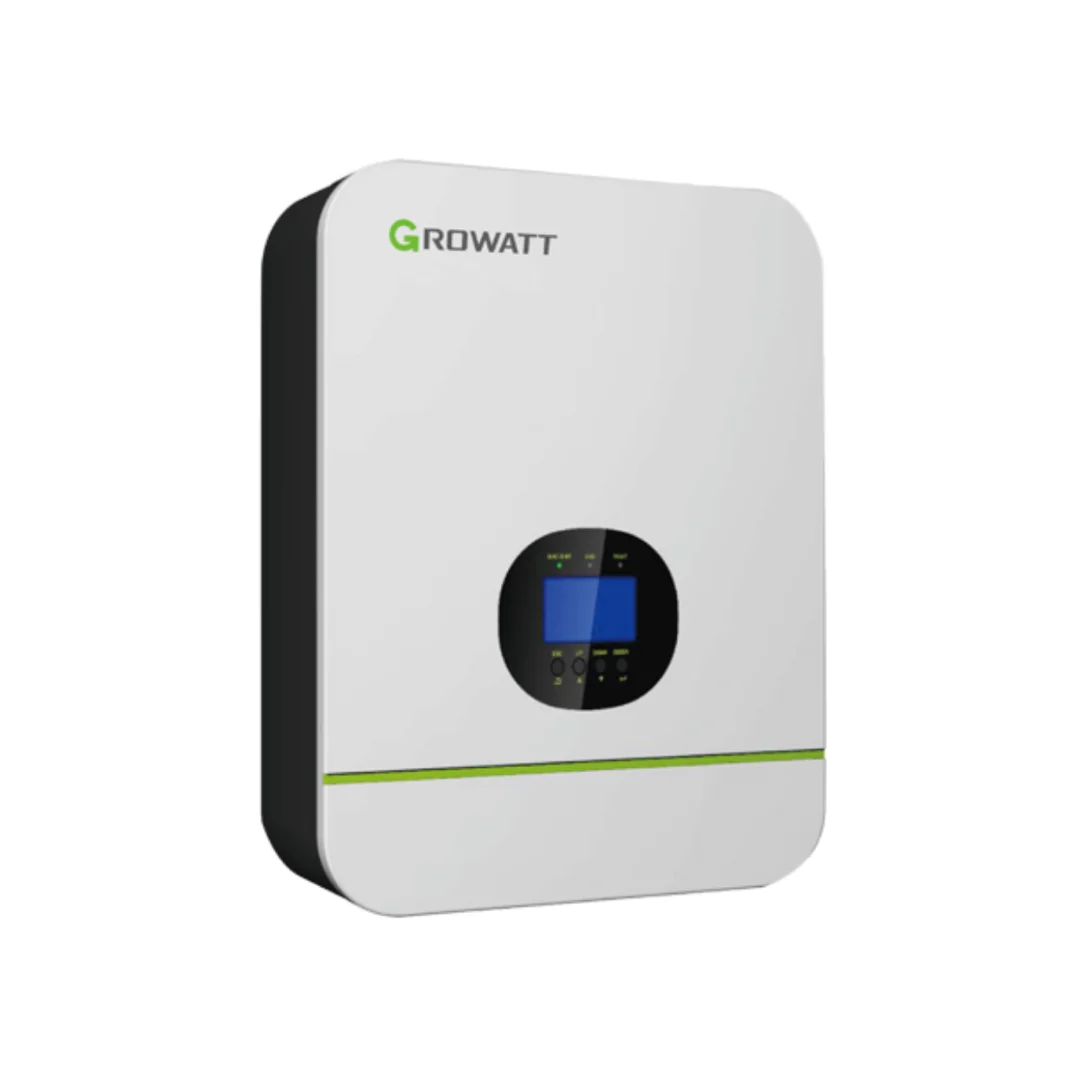

Growatt SPF 3000TL LVM series inverter has a pure sine wave output inverter also just for 120VAC power supply system. It is perfect for off-grid , backup power and self-consumption applications.

 It is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. The transformerless design provides reliable power conversion in compact size.

Features:

  • Integrated MPPT charge controller.
  • Configurable grid or solar input priority.
  • Optional WIFI/ GPRS remote monitoring.
  • Parallel for scalability

More Information:

Solar panels are a clean source of energy that use the sun’s rays to convert them into electricity or heat.

Our clean energy solutions provide electrical power as a way to decarbonize and transition to clean energy in our mission to combat climate change.

DatasheetSPF 3000TL LVM-24PSPF 3000TL LVM-48P
Battery Voltage24VDC48VDC

INVERTER OUTPUTSPF 3000TL LVM-24PSPF 3000TL LVM-48P
Rated Power3000VA/ 3000W3000VA/ 3000W
Parallel CapabilityYesYes
AC Voltage Regulation
(Battery Mode)
120VAC ± 5%
@ 50/60Hz
120VAC ± 5%
@ 50/60Hz
Surge Power6000VA6000VA
Efficiency (Peak)93%93%
WaveformPure sine wavePure sine wave
Transfer Time10 ms (For Personal Computers); 20 ms (For Home Appliances)10 ms (For Personal Computers); 20 ms (For Home Appliances)

SOLAR CHARGERSPF 3000TL LVM-24PSPF 3000TL LVM-48P
Maximum PV Array Power2000W4500W
MPPT Range @ Operating Voltage30VDC ~ 115VDC
60VDC ~ 115VDC
Maximum PV Array Open
Circuit Voltage
145VDC145VDC
Maximum Solar Charge Current80A80A
Maximum Efficiency98%98%
Standby Power Consumption
2 W2 W

AC CHARGERSPF 3000TL LVM-24PSPF 3000TL LVM-48P
Charge Current60A40A
AC Input Voltage120 VAC
120 VAC
Selectable Voltage Range95-140 VAC (For Personal Computers) ;
65-140 VAC (For Home Appliances)
95-140 VAC (For Personal Computers) ;
65-140 VAC (For Home Appliances)
Frequency Range50Hz/60Hz (Auto sensing)50Hz/60Hz (Auto sensing)

PHYSICALSPF 3000TL LVM-24PSPF 3000TL LVM-48P
Dimension (W/H/D)130/350/455mm130/350/455mm
Net Weight11.5kgs11.5Kgs

OPERATING ENVIRONMENTSPF 3500 ESSPF 5000 ES
Humidity5% to 95% Relative Humidity(Non-condensing)5% to 95% Relative Humidity(Non-condensing)
Operating Temperature0°C - 55°C0°C - 55°C
Storage Temperature-15°C - 60°C-15°C - 60°C

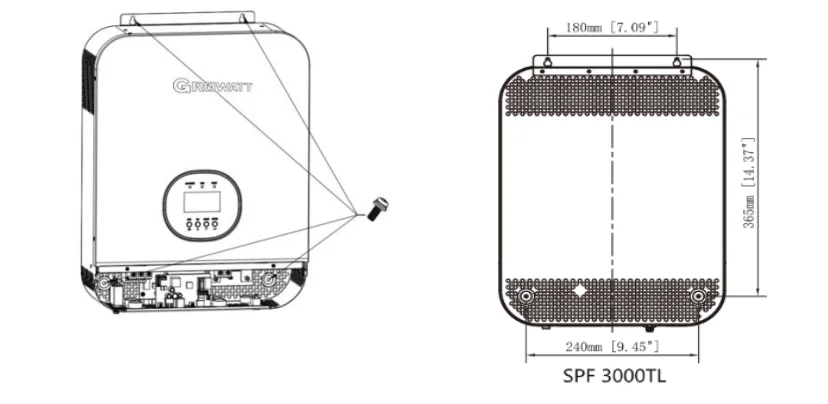

For information on how to install, please click the link here.
