One Hole Cable Clips (Circular Conductor)

One Hole Cable Clips (Circular Conductor)

SKU: OHxxx Category:
Download PDF

SKU: OHxxx Category:

Product Information:

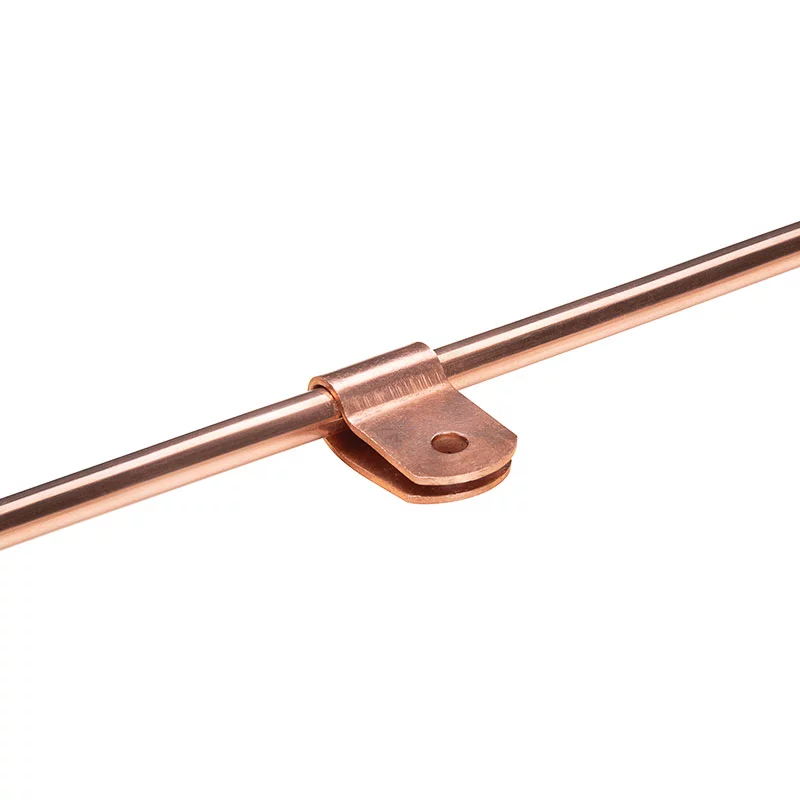

One Hole Cable Clips are a simple solution for fixing circular lightning protection conductors to flat surfaces.

Features:

Material: High Copper Content Alloy

More Information:

Use with bare or PVC insulated copper conductor.
When choosing a connector it is important to ensure:

  • The connector is mechanically robust.
  • The connector is selected according to its application.
  • The connector is rated for its application.
  • To avoid bimetallic corrosion: use a bimetallic connector (do not connect bare copper directly to bare aluminium, or have water run-off from copper fall onto aluminium).

Use with Bare Stranded Copper:

CONDUCTOR CSA (mm²)
CONDUCTOR DIA (approx mm)
CONDUCTOR TYPE
WEIGHT (kg)
PART NO.
16
5.1
Bare Stranded Copper
0.020
OH016
25
6.42
Bare Stranded Copper
0.020
OH025
35
7.56
Bare Stranded Copper
0.020
OH035
50
8.9
Bare Stranded Copper
0.020
OH050
70
10.7
Bare Stranded Copper
0.020
OH070
95
12.6
Bare Stranded Copper
0.022
OH095
120
14.21
Bare Stranded Copper
0.022
OH120
150
15.75
Bare Stranded Copper
0.025
OH150
185
17.64
Bare Stranded Copper
0.025
OH185
240
20.25
Bare Stranded Copper
0.027
OH240
300
22.68
Bare Stranded Copper
0.027
OH300
400
25.65
Bare Stranded Copper
0.032
OH400

Use with PVC Insulated Copper Cable:

CONDUCTOR CSA (mm²)
CONDUCTOR DIA (approx mm)
CONDUCTOR TYPE
WEIGHT (kg)
PART NO.
16
7.10
PVC Insulated Copper Cable
0.020
OH016INS
25
8.90
PVC Insulated Copper Cable
0.020
OH025INS
35
9.95
PVC Insulated Copper Cable
0.020
OH035INS
50
11.70
PVC Insulated Copper Cable
0.022
OH050INS
70
13.35
PVC Insulated Copper Cable
0.022
OH070INS
95
15.60
PVC Insulated Copper Cable
0.025
OH095INS
120
17.20
PVC Insulated Copper Cable
0.027
OH120INS
150
19.10
PVC Insulated Copper Cable
0.027
OH150INS
185
21.30
PVC Insulated Copper Cable
0.027
OH185INS
240
24.30
PVC Insulated Copper Cable
0.030
OH240INS
300
27.05
PVC Insulated Copper Cable
0.032
OH300INS
400
30.35
PVC Insulated Copper Cable
0.032
OH400INS
