Plastic Inspection Pit

Plastic Inspection Pit

SKU: PPIT-K Categories: ,

Size (W x H) (mm): 306 x 216

Weight (kg): 3.00

Download PDF

SKU: PPIT-K Categories: ,

Product Information:

The Plastic Inspection Pit protects the Earth Rod connection and makes it available for inspection. The Plastic Inspection Pit can have up to 3 Earth Bars fitted in the slots provided for multiple connections.
Paving can be laid up to the lid edge without an unsightly concrete filler surround. Installation instructions are printed on the side. Will withstand 6000kg load when installed correctly.

Lockable lid, using a screwdriver or special key to release the locking mechanism.

Features:

Material: Polypropylene (body), GRP (lid)
Standard: BS:EN 62561-5:2011

More Information:

For installing lightning earthing system applications, We recommend the use of Copper earth electrode systems due to their inherent low resistivity and corrosion resistance.

Materials used in earthing systems must be able to:

  • withstand mechanical damage,
  • resist corrosion,
  • provide a low impedance path to earth,
  • and carry the maximum fault condition for the application/installation.

For protective earth networks and lightning protection applications our range encompasses:
Copper earth rod, earthing pole, copper bonded ground rod, earth ground rod, earth rod connector, earth rod cover, earth fitting, earthing studs, ground clamps for ground rod, ground pole and grounding post.

Our castings are high quality/high copper content complying to BS 7430 and BS 62561-1. Additional to our range are UL listed copperbond earth rods and exothermic welding.

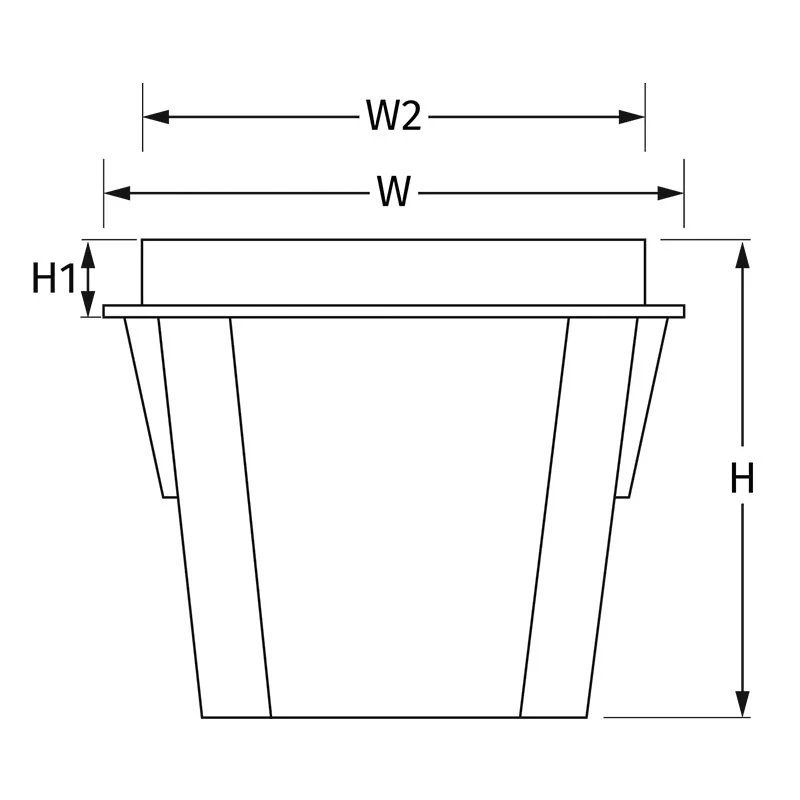

DESCRIPTION
W
W2
H
H1
WEIGHT (kg)
PART NO.
Plastic Inspection Pit
306
260
216
55
3.00
PPIT-K
