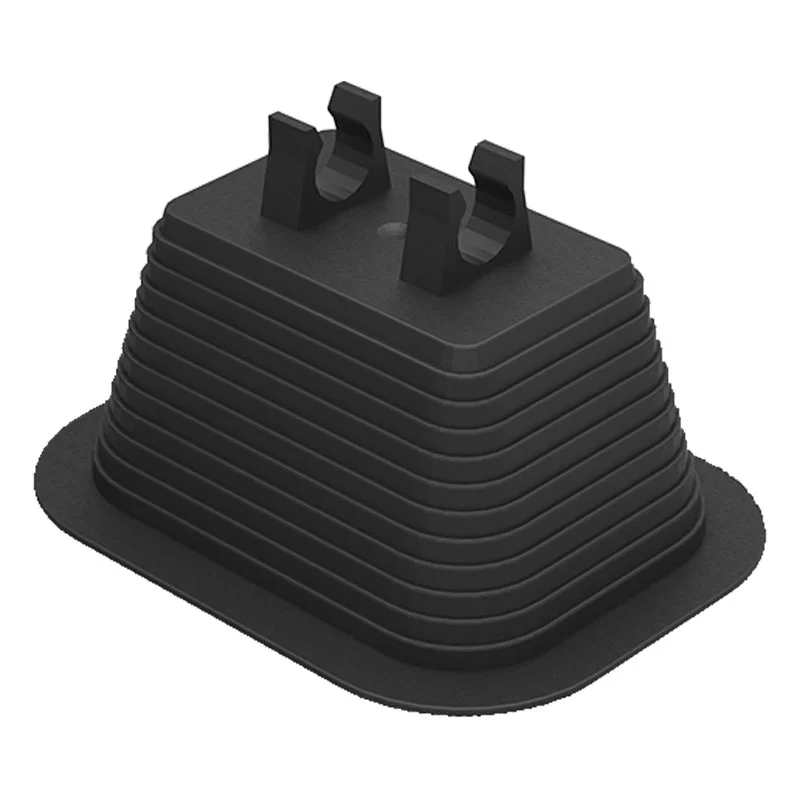

Pyramid Holdfast Cable Holder

Pyramid Holdfast Cable Holder

Download PDF

Product Information:

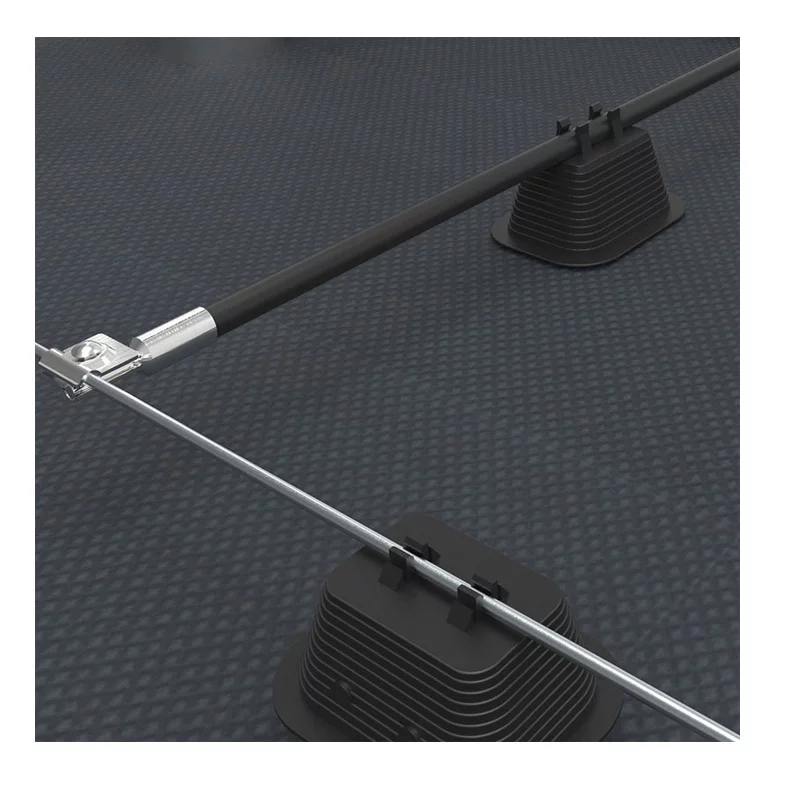

The Pyramid Holdfast is designed to hold the insulated cable on flat roofs where it is not possible to drill holes for fixing clips.

Features:

Material: PVC filled with concrete

More Information:

Can be used in the application of Free-Standing Interception Masts or Interception Mast/ Air Terminals.

Free-Standing Interceptions Masts are suited to the protection of roof-mounted plants, for example, chillers, solar panels, etc. They are used where there is sufficient roof space to maintain the appropriate separation distance between the mast and the object being protected.

Interception Masts are specially designed to be used with the Kingsmill Insulated Lightning Conductor. This system is used with objects where there is no possibility to maintain separation, due either to lack of sufficient space or simply for aesthetic reasons. Through using Insulated Lightning Conductor, the Air Terminal can be placed closer to the object to be protected-for example, roof-mounted plant or solar PV panels.

CONDUCTOR DIAMETER
CONDUCTOR TYPE
NUMBER OF CLIPS
WEIGHT (kg)
PART NO.
Cable Holder
Insulated
2
2.20
KM31000111
