Reinforcing Conductor Clamps

Reinforcing Conductor Clamps

Clear
Download PDF

Product Information:

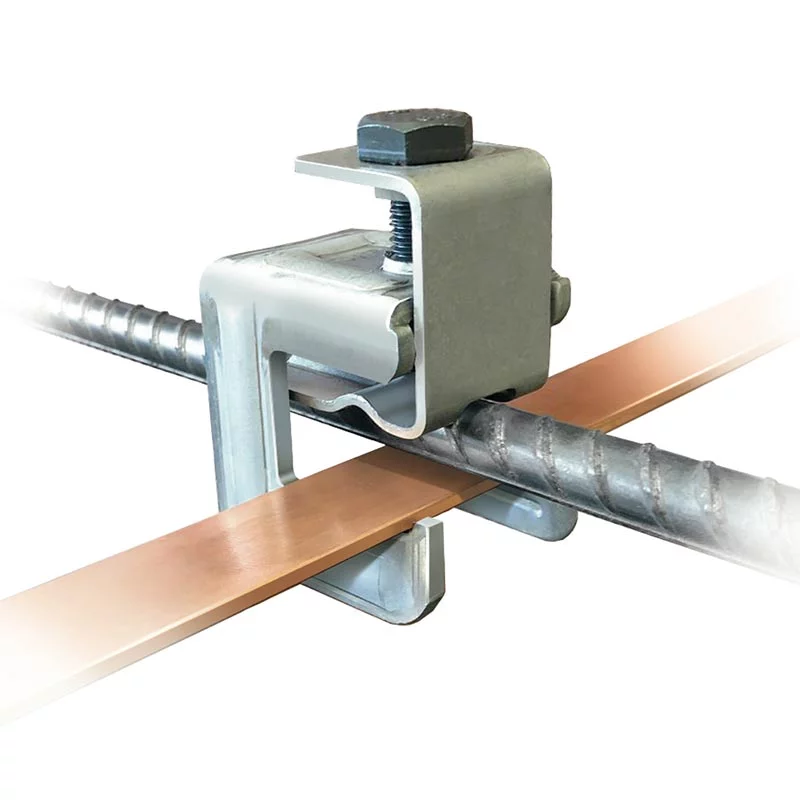

Reinforcing Conductor Clamps are used to connect the flat and circular conductors to reinforcing bars.

Features:

Material: Zinc Plated Steel
Standard: BS:EN 62561-1

More Information:

An important part of a Lightning Protection System (LPS) is that electrically continuous parts of a structure must be bonded into the Lightning Protection network. The purpose of this bonding is to ensure that, in the event of a lightning discharge, any sparking of flashover of the lightning current to conductive parts of the structure, for example, water pipes, cables, etc are avoided.

REBAR SIZE (mm²)CIRCULAR CONDUCTOR
FLAT CONDUCTOR (mm)
WEIGHT (kg)
PART NO.
6 - 20N/A
25 x 3 - 30 x 3.5
0.21
KMRC20
6 - 208 - 10mm dia
25 x 3 - 30 x 3.5
0.26
KMRC20-P
258 - 10mm dia
25 x 3 - 30 x 3.5
0.20
KMRC25-P
30N/A
25 x 3 - 30 x 3.5
0.15
KMRC30
