PVC Covered Solid Circular Aluminium

PVC Covered Solid Circular Aluminium

SKU: CAxx Category: Tag:
Clear
Download PDF

SKU: CAxx Category: Tag:

Product Information:

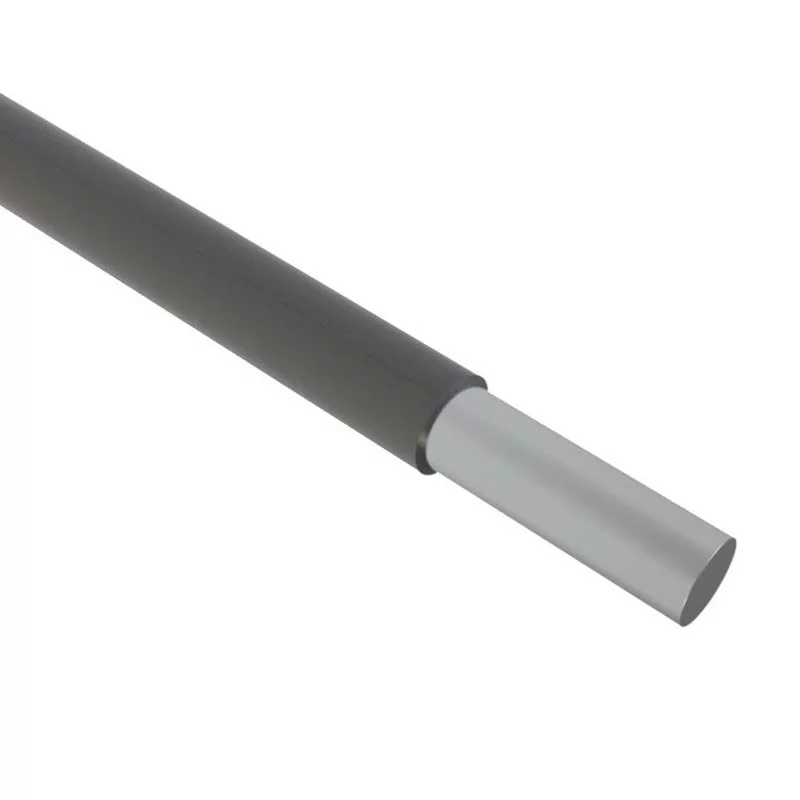

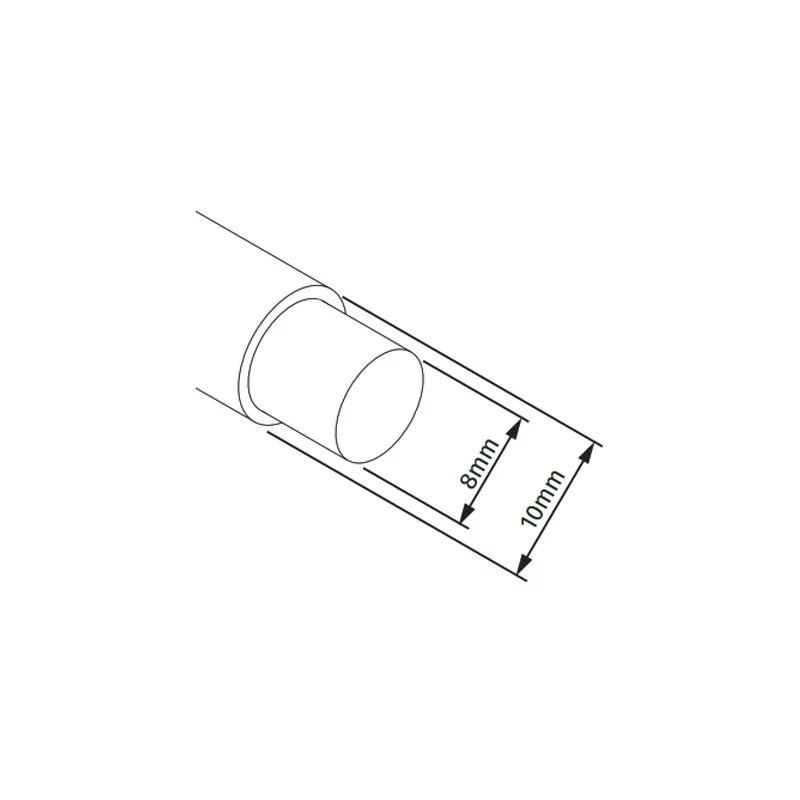

Kingsmill offers UV-stabilised PVC Covered Solid Circular Aluminium in a range of colours*. Colours match the most common structural materials to reduce the visual impact of a Lightning Protection conductor. Outer diameter (10mm) includes the PVC sheathing.

Features:

Material: Aluminium
Standard: BS:EN 755-5 (formerly BS 1432) (conductor), BS 5252 (⁺PVC colours)

More Information:

Sold in the specified coil lengths only. Use with 10mm clips.

Special colours are available upon request but are subject to minimum quantity and higher set-up costs. Please contact our sales team with details of your requirements.

Conductors are an essential component of a Lightning Protection System. They form part of:

  • The Air Termination Network – arresting the lightning strike
  • The Down Conductor System – taking the lightning discharge to ground
  • The Earth Termination/Network – safely dissipating the lightning discharge into the ground.

Conductors are also an integral and important component of an earthing system, whether this be for a power station, sub-station, cell site, solar PV array, etc.

Conductors provide a low impedance path and they must be:

  • Correctly sized for fault current
  • Sufficiently robust to resist mechanical damage
  • Able to resist the effects of corrosion
COLOUR
CSA (mm²)
COIL SIZE (m)
WEIGHT (kg/m)
COLOUR (to BS 5252*)
PART NO.
Black
50
50
0.18
18B29 ⁺ CABL
Brown
50
50
0.18
06C39 ⁺ CABN
Grey
50
50
0.18
00A07 ⁺ CAGY
Stone
50
50
0.18
08B23 ⁺ CAST
White
50
50
0.18
10B15 ⁺ CAWH
