Air Terminal Mast Holder with Threaded Insert

Air Terminal Mast Holder with Threaded Insert

Download PDF

Product Information:

The Air Terminal Mast Holders with Threaded Insert are designed for use with our Insulated Lightning Conductor Wall Mounted Interception Masts and also steel/aluminium side mounted interception masts.

Use with Pipe Fixing Brackets: KM97701105 (single) and KM96701105 (double).

Features:

Material: Galvanised Steel

More Information:

Can be used in the application of an Isolated Air Termination System or as part of the Kingsmill Insulated Lightning Conductor System.

The Kingsmill Insulated Lightning Conductor System is used with objects where there is no possibility to maintain separation, due either to lack of sufficient space or simply for aesthetic reasons. Through using Insulated Lightning Conductor, the Air Terminal can be placed closer to the object to be protected-for example, roof-mounted plant or solar PV panels.

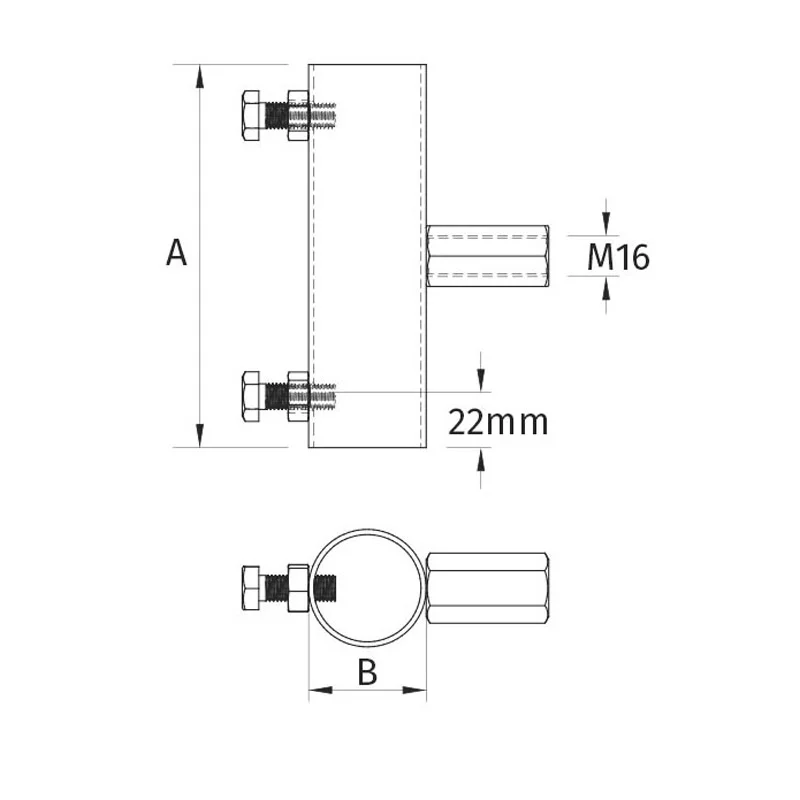

A
B
MAST TIGHTENING SCREWS
WEIGHT (kg)
PART NO.
100
30
2 x M10 x 30
0.50
KM96000701
130
42
2 x M10 x 30
0.70
KM96000801

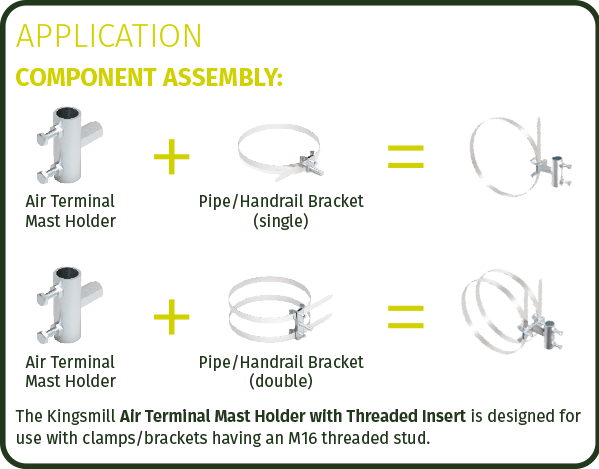

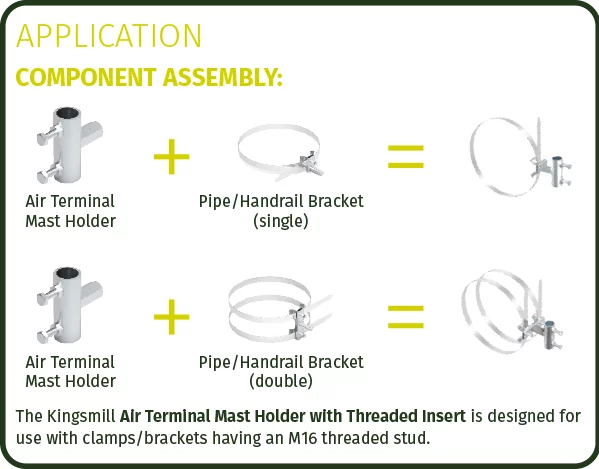

Applications:
